Product Summary
The TDA7275 is a motor speed regulator. It is a linear integrated circuit in minidip plastic package. It is intendedfor use as speed regulator forDC motors of record players,tape and cassette recorders. The dump protection make the TDA7275 particularly suitable for car radio applications.
Parametrics
TDA7275 absolute maximum ratings: (1)VS Supply Voltage: 19 V; (2)VS Peak Supply Voltage (for 50ms): 45 V; (3)IM Maximum Output Current: 1.5 A; (4)Top Operating Temperature Range: –30 to +85 ℃; (5)Ptot Power Dissipation: 1W at Tamb = 70℃; 4W at Tpins = 70℃.
Features
TDA7275 features: (1)excellent versatilityin use; (2)high output current (up to 1.5 a); (3)lowquiescentcurrent; (4)lowreference voltage (1.32v); (5)excellent parameters stability versus ambient temperature start/stopfunction (ttl levels); (6)dump protection.

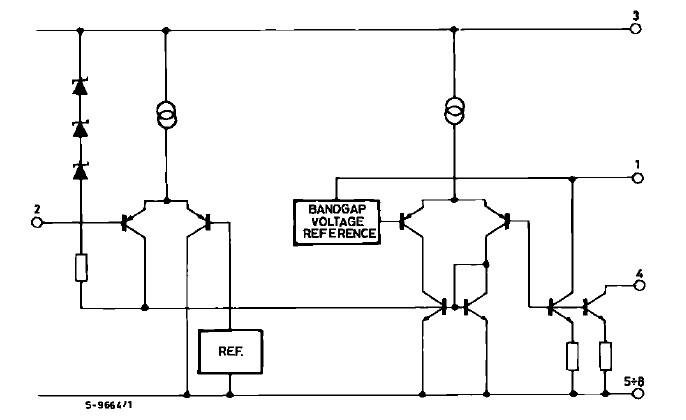

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA7275A |
Other |
|
Data Sheet |
Negotiable |
|
||||
