Product Summary

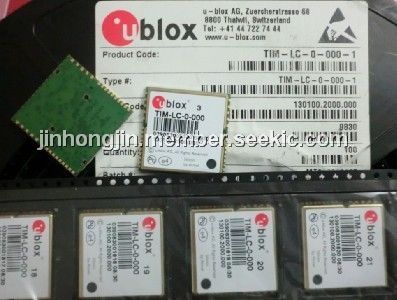

The TIM-LC-0-000-1 is an ultra-low power OEM GPS module suitable for active antennas to run standard PVT applications. The TIM-LC-0-000-1 provides two 3V(5V TTL input compatible)serial ports and easy-to-use boot time configuration pins. The combination of lowest power consumption, cost-optimized architecture(no Flash EPROM inside) and innovative packaging technology makes the TIM-LC-0-000-1 suitable for high-volume applications where small size, low cost and simplicity are key issues.

Parametrics

TIM-LC-0-000-1 absolute maximum ratings: (1)Power supply voltage Vcc: -0.3 to 3.6 V; (2)Input pin voltage (1.8V inputs, RESET_N) Vio: -0.3 to 1.95 V; (3)Input pin voltage(RxD1) Vrxd: -0.3 to 8 V; (4)BOOT_INT pin Vboot: -0.3 to 3.3 V; (5)VCC_RF output current Iccrf: 50 mA; (6)Antenna bias voltage(applied via V_ANT) Vant: 0 to 8 V; (7)Antenna bias current(applied via V_ANT) Iant: 100 mA; (8)Inpu power at RF_IN Prfin: 0 dBm; (9)Inputpower at RF_IN Prfin: 10 dBm; (10)Storage!temperature Tstg: -40 to 125℃.

Features

TIM-LC-0-000-1 features: (1)16 channel GPS receiver; (2)8192 simultaneous time-frequency search bins; (3)4 Hz position update rate; (4)ANTARIS Positioning Engine; (5)DGPS and SBAS (WAAS,EGNOS)support; (6)FixNOW power saving mode; (7)Operating voltage 2.7 to 3.3 V; (8)Battery supply pin for internal backup memory and real time clock; (9)Industrial operating temperature range -40 to 85℃.

Diagrams

TIM-LC-0-000-1 block diagram

TIM-LR
TIM-LR
