MAX8511EXK29-T

Ultra-Low-Noise, High PSRR, Low-Dropout, 120mA Linear Regulator, SOT353, Overcurrent and Thermal Protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.60

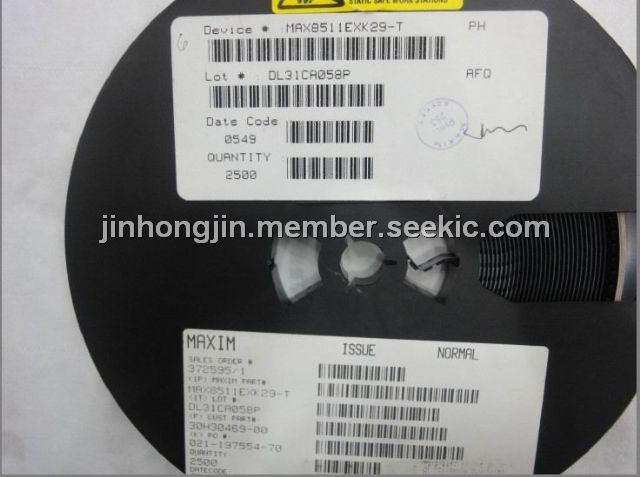

PartNumber:: MAX8511EXK29-T

Brand:: Maxim Integrated Products - Maxim | Pack: SOT | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kevin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-30

From Other Seller

Part Number:MAX8511EXK29-T
US $0.50 - 0.60
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX8511EXK29-T is a 120mA ultra-low-noise, low-dropout (LDO) linear regulator. It is designed to deliver up to 120mA continuous output current from a tiny 5-pin SC70 plastic package. The MAX8511EXK29-T achieves a low 120mV dropout for 120mA load current. The applications of the MAX8511EXK29-T are Cellular and Cordless Phones, PDA and Palmtop Computers, Base Stations, Bluetooth Portable Radios and Accessories, Wireless LANs, Digital Cameras, Personal Stereos, Portable and Battery-Powered Equipment.

Parametrics

MAX8511EXK29-T absolute maximum ratings: (1)IN to GND:-0.3V to +7V; (2)Output Short-Circuit Duration:Infinite; (3)OUT, SHDN to GND:-0.3V to (IN + 0.3V); (4)FB, BP, N.C. to GND:-0.3V to (OUT + 0.3V); (5)Operating Temperature Range:-40℃ to +85℃; (6)Junction Temperature:+150℃; (7)Storage Temperature Range:-65℃ to +150℃; (8)Lead Temperature (soldering, 10s):+300℃.

Features

MAX8511EXK29-T features: (1)Space-Saving 5-Pin SC70 Package; (2)120mV Dropout at 120mA Load; (3)Stable with 1μF Ceramic Capacitor for Any Load ; (4)Guaranteed 120mA Output; (5)Only Need Input and Output Capacitors; (6)Output Voltages: 1.5V, 1.8V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 3V, 3.3V, 4.5V; (7)Low 40μA Ground Current; (8)Excellent Load/Line Transient; (9)Overcurrent and Thermal Protection.
