Product Summary

The TMP87PH46NG is a one-time PROM microcontroller with low power 128K bits electrically programmable read only memory for the TMP87PH46NG system evaluation. The operations possible with the device can be performed by writing programs to PROM. The TMP87PH46NG can write and verify in the same way as the TMM27256AD using an adaptor socket and an EPROM programmer.

Parametrics

TMP87PH46NG absolute maximum ratings: (1)supply voltage:-0.3V to 6.5V; (2)input voltage:-0.3V to VDD+0.3V; (3)output voltage:-0.3V to VDD+0.3V; (4)output current: 3.2mA, 30mA, 100mA, 120mA; (5)power dissipation:600mW; (6)soldering temperature:260℃(10s); (7)storage temperature:-55℃ to 125℃; (8)operating temperature:-30℃ to 70℃.

Features

TMP87PH46NG features: (1)hysteresis voltage:0.9V; (2)input current:±2uA; (3)input resistance:100kΩ to 450kΩ; (4)output high voltage:4.1V; (5)output low voltage:0.4V; (6)output low current:20mA.

Diagrams

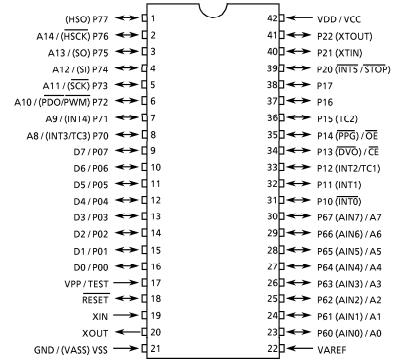

TMP87PH46NG pin configuration
