Product Summary

The TSH73CPT is a Single, Dual, Triple and Quad operational amplifier featuring high video performances with large bandwidth, low distortion and excellent supply voltage rejection. The TSH73CPT features some Standby input, each of which allows the op amp to be put into a standby mode with low power consumption and high output impedance. The TSH73CPT is used in Video buffers, A/D Converters driver, HiFi applications.

Parametrics

TSH73CPT absolute maximum ratings: (1)VCC Supply Voltage: 14 V; (2)Vid Differential Input Voltage: ±2 V; (3)Vi Input Voltage: ±6 V; (4)Toper Operating Free Air Temperature Range: 0 to +70 ℃; (5)Tstg Storage Temperature: -65 to +150 ℃; (6)Tj Maximum Junction Temperature: 150 ℃; (7)ESD HumanBodyModel: 2 kV.

Features

TSH73CPT features: (1)3V, 5V, ±5V specifications; (2)3db-bandwidth: 90mhz; (3)gain-bandwidth product: 70mhz; (4)slew-rate: 100v/μs; (5)output current: up to 55ma; (6)input single supply voltage; (7)output rail to rail; (8)specified for 150ω load; (9)low distortion, thd: 0.1%; (10)sot23-5, tssop and so packages.

Diagrams

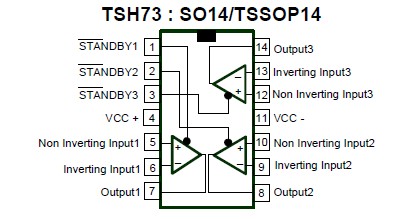

TSH73CPT diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TSH73CPT
TSH73CPT

STMicroelectronics

Operational Amplifiers - Op Amps Lo Pwr Oper Amp Wide Band

Data Sheet

0-1680: $0.54
1680-2000: $0.49
2000-2500: $0.49
2500-5000: $0.46
