SN74ABT162244DLR

6-bit buffer and line driver, 48SSOP, 4.5 V ~ 5.5 V, 12mA, SN74ABT162244DLR, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.55~0.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.55~0.65

PartNumber:: SN74ABT162244DLR

Brand:: Texas Instruments - TI | Pack: SSOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kevin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-17

From Other Seller

Part Number:SN74ABT162244DLR
US $0.55 - 0.65
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
AT24C02BN-SH-T

US $0.08 - 0.15 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SN74ABT162244DLR is a 6-bit buffer and line driver designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. THe device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. The SN74ABT162244DLR provides noninverting outputs and symmetrical active-low output-enable (OE) inputs.

Parametrics

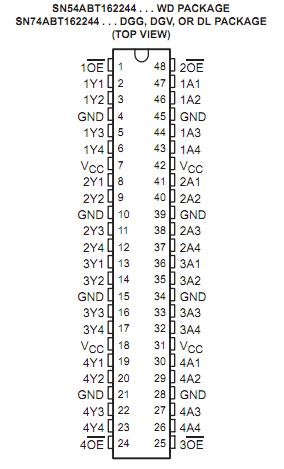

SN74ABT162244DLR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI: -0.5 V to 7 V; (3)Voltage range applied to any output in the high or power-off state, VO: -0.5 V to 5.5 V; (4)Current into any output in the low state, IO: 30 mA; (5)Input clamp current, IIK (VI < 0): -18 mA; (6)Output clamp current, IOK (VO < 0): -50 mA; (7)Package thermal impedance, θJA: 58℃/W; (8)Storage temperature range, Tstg: -65 to 150℃.
