Product Summary
The OP42AJ is a JFET-input operational amplifier. The OP42AJ offers a symmetric 58V/μs slew rate and is internally compensated for unity-gain operation. The OP42AJ speed is achieved with a supply current of less than 6mA. Excellent radiation hardness characteristics make the OP42AJ ideal for military and aerospace applications.
Parametrics
OP42AJ absolute maximum ratings: (1)supply voltage: ±20V; (2)differential input voltage: ±20V; (3)input voltage: 40V; (4)output short-circuit duration: Indefined; (5)storage temperature range: -65 to 150℃; (6)lead temperature range: 300℃; (7)operating temperature range: -55 to 125℃; (8)junction temperature, Tj: -65 to 175℃.
Features
OP42AJ features: (1)Slew rate: 50V/μS Min; (2)Settling Time: 1μs Max; (3)Gain Bandwidth product: 10MHz; (4)Common Mode rejection: 88dB Min; (5)Open loop gain: 500V/mV Min; (6)Offset voltage: 750μV Max; (7)Bias current: 200pA Max.

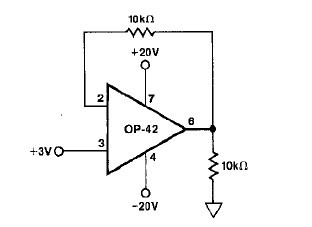

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP42AJ |
Analog Devices Inc |
IC PREC OPAMP HIGH SPEED TO-99-8 |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
OP42 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
OP421 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
OP42AJ |
Analog Devices Inc |
IC PREC OPAMP HIGH SPEED TO-99-8 |
Data Sheet |
|
|
||||||
 |
OP42AZ |
|
IC OPAMP JFET 10MHZ PREC 8CDIP |
Data Sheet |
|
|
||||||
 |
OP42EJ |
|
IC OPAMP JFET 10MHZ PREC TO99-8 |
Data Sheet |
|
|
||||||
|
OP42EZ |
|
IC OPAMP JFET 10MHZ PREC 8CDIP |
Data Sheet |
|
|
||||||
