Product Summary

The 293D476X5016D2TE3 is a Solid Tantalum Surface Mount Capacitor.

Parametrics

293D476X5016D2TE3 specifications: (1)Operating Temperature: - 55 ℃ to + 85 ℃(To + 125 ℃ with voltage derating); (2)Capacitance Range: 0.10 μF to 1000 μF; (3)Capacitance Tolerance: ±5%, ±10 %, ±20 %; (4)100 % Surge Current Tested (D and E Case Codes); (5)Voltage Rating: 4 VDC to 63 VDC.

Features

293D476X5016D2TE3 features: (1)Terminations: 100 % matte tin, standard,tin/lead available; (2)Compliant terminations; (3)Molded case available in six case codes; (4)Compatible with High Volume automatic pick and place equipment; (5)Optical character recognition qualified; (6)Meets IEC specification QC300801/US0001 and EIA535BAAC mechanical and performance requirements; (7)Moisture sensitivity level 1.

Diagrams

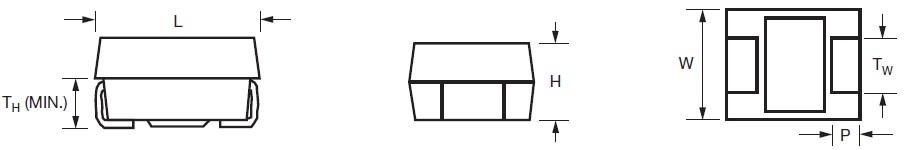

293D476X5016D2TE3 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

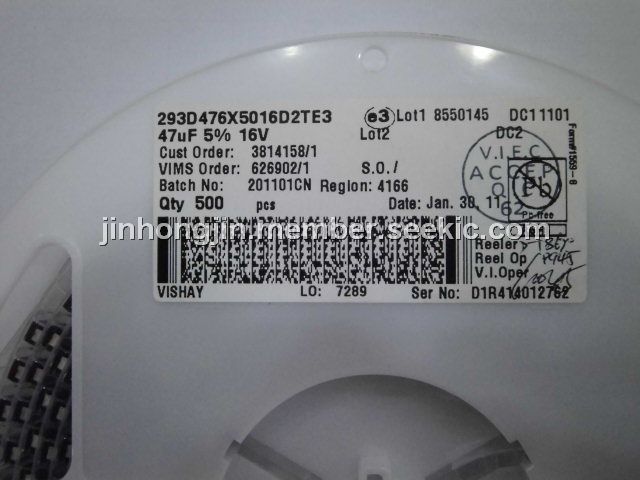

293D476X5016D2TE3
293D476X5016D2TE3


CAP TANT 47UF 16V 5% 2917

Data Sheet

0-500: $0.29
