Product Summary
The MAX8511EXK18-T is a 120mA ultra-low-noise, low-dropout (LDO) linear regulator. It is designed to deliver up to 120mA continuous output current from a tiny 5-pin SC70 plastic package. The MAX8511EXK18-T achieves a low 120mV dropout for 120mA load current. The applications of the MAX8511EXK18-T are Cellular and Cordless Phones, PDA and Palmtop Computers, Base Stations, Bluetooth Portable Radios and Accessories, Wireless LANs, Digital Cameras, Personal Stereos, Portable and Battery-Powered Equipment.
Parametrics
MAX8511EXK18-T absolute maximum ratings: (1)IN to GND:-0.3V to +7V; (2)Output Short-Circuit Duration:Infinite; (3)OUT, SHDN to GND:-0.3V to (IN + 0.3V); (4)FB, BP, N.C. to GND:-0.3V to (OUT + 0.3V); (5)Operating Temperature Range:-40℃ to +85℃; (6)Junction Temperature:+150℃; (7)Storage Temperature Range:-65℃ to +150℃; (8)Lead Temperature (soldering, 10s):+300℃.
Features
MAX8511EXK18-T features: (1)Space-Saving 5-Pin SC70 Package; (2)120mV Dropout at 120mA Load; (3)Stable with 1μF Ceramic Capacitor for Any Load ; (4)Guaranteed 120mA Output; (5)Only Need Input and Output Capacitors; (6)Output Voltages: 1.5V, 1.8V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 3V, 3.3V, 4.5V; (7)Low 40μA Ground Current; (8)Excellent Load/Line Transient; (9)Overcurrent and Thermal Protection.

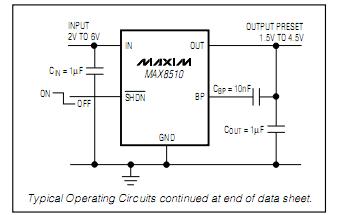

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

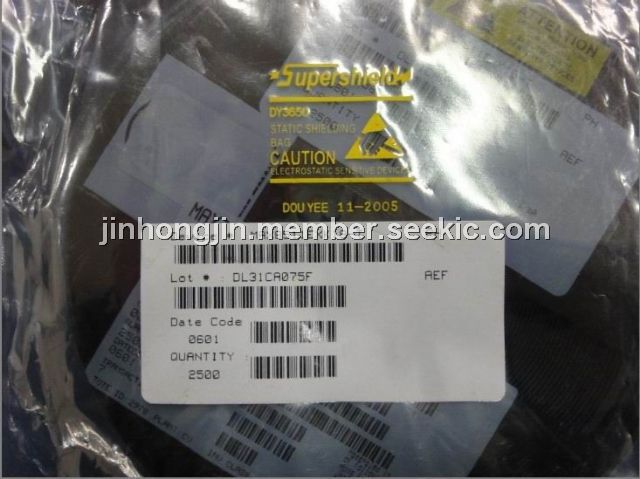

MAX8511EXK18-T |
Maxim Integrated Products |
Low Dropout (LDO) Regulators 120mA Linear Regulator |
Data Sheet |
Negotiable |
|
|||||||||||||
