Product Summary
The FAN2514SX is a 200mA micropower low-dropout voltage regulator. It utilizes CMOS technology to offer a new level of cost-effective performance in GSM, TDMA, and CDMA cellular handsets, Laptop and Notebook portable computers, and other portable devices. Features of the FAN2514SX include extremely low power consumption and low shutdown current, low dropout voltage, exceptional loop stability able to accommodate a wide variety of external capacitors, and the compact SOT23-5 surface-mount package. The applications of the FAN2514SX are Cellular Phones and accessories, PDAs, Portable cameras and video recorders, Laptop, notebook and palmtop computers.
Parametrics
FAN2514SX absolute maximum ratings: (1)VIN (Measured to GND):0 to 7 V; (2)Enable Input(EN) Applied voltage (Measured to GND):0 to 7V; (3)ERR Output Applied voltage (Measured to GND):0 to 7V; (4)Power Dissipation:Internally limited; (5)Junction Temperature:-65 to 150℃; (6)Lead Soldering Temperature (5 seconds):260℃; (7)Storage Temperature:-65 to 150℃; (8)Electrostatic Discharge:4kV.
Features
FAN2514SX features: (1)Ultra Low Power Consumption; (2)Enable optimized for CDMA time phases; (3)200 mV dropout voltage at 200 mA; (4)75 μA ground current at 200 mA; (5)Enable/Shutdown Control; (6)SOT23-5 package; (7)Thermal limiting; (8)300 mA peak current.

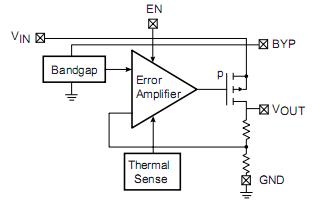

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FAN2514SX |
Fairchild Semiconductor |
Low Dropout (LDO) Regulators LDO Voltage |
Data Sheet |
Negotiable |
|
|||||||||||||
FAN2514SX_Q |
Fairchild Semiconductor |
Low Dropout (LDO) Regulators LDO Voltage |
Data Sheet |
|
|
