Product Summary

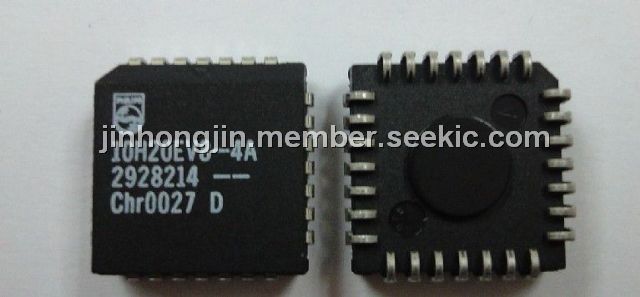

The 10H20EV8-4A is an ultra high-speed universal ECL PAL device. Combining versatile output macrocells with a standard AND/OR single programmable array, this device is ideal in implementing a user’s custom logic. The use of Philips Semiconductors state-of-the-art bipolar oxide isolation process enables the 10H20EV8-4A to achieve optimum speed in any design. The SNAP design software package from Philips Semiconductors simplifies design entry based upon Boolean or state equations.

Parametrics

10H20EV8-4A absolute maximum ratings: (1)VEE, Supply voltage: –8.0 V; (2)VIN, Input voltage (VIN should never be more negative than VEE): 0 to VEE V; (3)IO, Output source current: –50 mA; (4)TS, Operating Temperature range: –55 to +150℃; (5)TJ, Storage Temperature range, Ceramic Package: +165℃; Plastic Package: +150℃.

Features

10H20EV8-4A features: (1)Ultra high speed ECL device: tPD = 4.5ns (max); tIS = 2.6ns (max); tCKO = 2.3ns (max); fMAX = 208MHz; (2)Universal ECL Programmable Array Logic: 8 user programmable output macrocells; Up to 20 inputs and 8 outputs; Individual user programmable output polarity; (3)Variable product term distribution allows increased design capability; (4)Asynchronous Preset and Reset capability; (5)10KH and 100K options; (6)Power-up Reset and Preload function to enhance state machine design and testing; (7)Design support provided via SNAP and other CAD tools; (8)Security fuse for preventing design duplication; (9)Available in 24-Pin 300mil-wide DIP and 28-Pin PLCC.

Diagrams

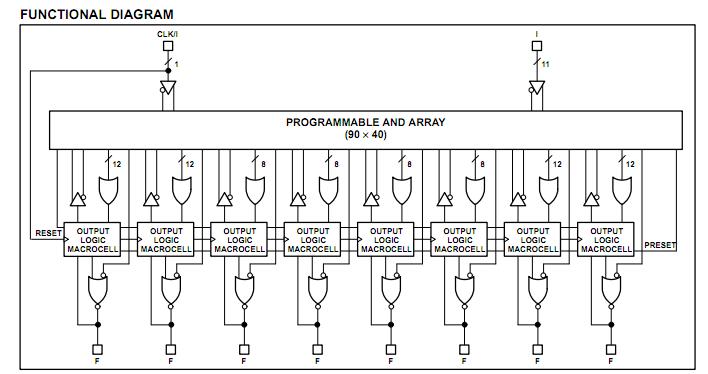

10H20EV8-4A functional block diagram
