Product Summary
The MPC8270CZUUPEA is a integrated communications processor. It is available in three packages-the standard ZU package and the alternate VR or ZQ packages.
Parametrics
MPC8270CZUUPEA absolute maximum ratings: (1)Core supply voltage:-0.3V to 2.25V; (2)PLL supply voltage:-0.3V to 2.25V; (3)I/O supply voltage:-0.3V to 4.0V; (4)Input voltage:GND-0.3V to 3.6V; (5)Junction temperature:120℃; (6)Storage temperature range:-55℃ +150℃.
Features
MPC8270CZUUPEA features: (1)Dual-issue integer (G2_LE) core; (2)A core version of the EC603e microprocessor; (3)System core microprocessor supporting frequencies of 166–450MHz; (4)Separate power supply for internal logic and for I/O; (5)Separate PLLs for G2_LE core and for the CPM; (6)64-bit data and 32-bit address 60x bus; (7)32-bit data and 18-bit address local bus; (8)60x-to-PCI bridge ; (9)Supports the I2O standard; (10)Hot-swap friendly ; (11)Support for 66.67/83.33/100 MHz, 3.3 V specification; (12)60x-PCI bus core logic that uses a buffer pool to allocate buffers for each port.

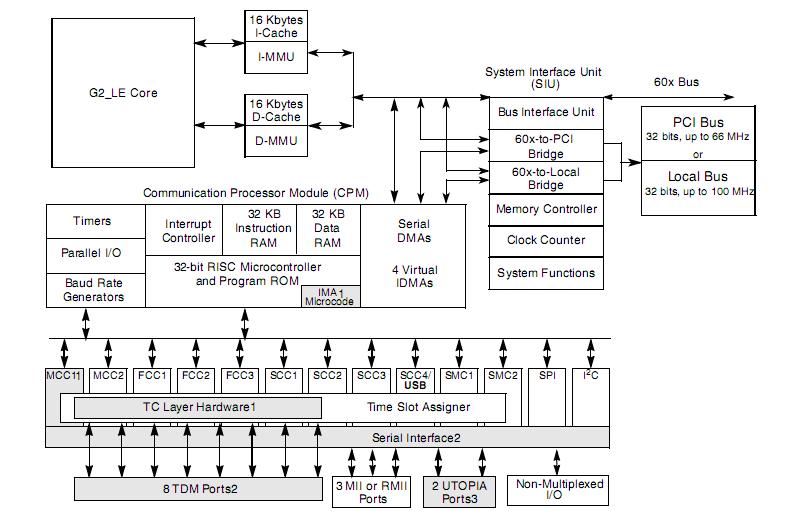

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPC8270CZUUPEA |
Freescale Semiconductor |
Microprocessors (MPU) PQ II HIP 7 REV A |
Data Sheet |
|
|
||||||||||
