Product Summary

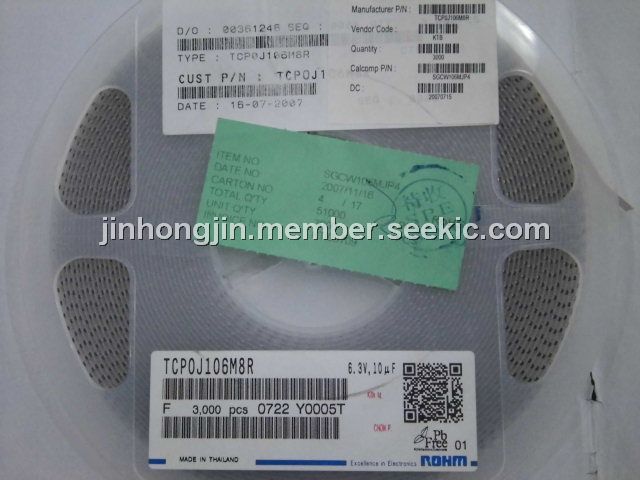

The TCP0J106M8R is a chip tantalum capacitor.

Parametrics

TCP0J106M8R specifications: (1)Operating temperature: -55℃ to +125℃; (2)Maximum operating temperature with no voltage derating: +85℃; (3)Rated voltage(VDC): 6.3; (4)Category voltage(VDC): 4; (5)Surge voltage(VDC): 8; (6)DC leakage current: 0.5μA or 0.01CV; (7)Capacitance tolerance: shall be satisfied allowance range. ±20%.

Features

TCP0J106M8R features: (1)Vital for all hybird integrated circuits board application; (2)Wide capacitance range; (3)Screening by thermal shock.

Diagrams

TCP0J106M8R dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TCP0J106M8R
TCP0J106M8R

CAP TANT 10UF 6.3V 20% 0805
Data Sheet
0-1: $0.34
1-10: $0.29
10-100: $0.18
100-250: $0.14
250-500: $0.13
500-1000: $0.10
