Product Summary

The BAS70SL is a 70V Schottky Barrier Diode.

Parametrics

BAS70SL absolute maximum ratings: (1)Maximum Repetitive Reverse Voltage:70 V; (2)Average Rectified Forward Current:70 mA; (3)Forward Surge Current( 8.3mS Single Half Sine-Wave):100 mA; (4)Power Dissipation:227 mW; (5)Operating Junction & Storage Temperature Range:-55℃ to +150℃.

Features

BAS70SL features: (1)Low Forward Voltage Drop; (2)Fast switching; (3)Very Small and Thin SMD package; (4)Profile height, 0.43mm max; (5)Footprint, 1.0 x 0.6 mm.

Diagrams

BAS70SL connection diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

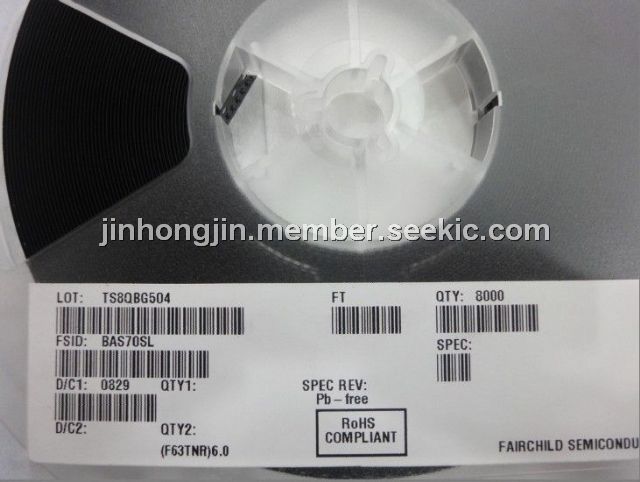

BAS70SL
BAS70SL

Fairchild Semiconductor

Schottky (Diodes & Rectifiers) 70V 0.07A

Data Sheet

0-1: $0.24
1-25: $0.14
25-100: $0.10
100-250: $0.07
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BAS70-00-GS08
BAS70-00-GS08

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 100mA 70 Volt

Data Sheet

Negotiable
BAS70-00-V-GS08
BAS70-00-V-GS08

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 100mA 70 Volt

Data Sheet

0-1: $0.06
1-10: $0.05
10-50: $0.05
50-100: $0.04
BAS70-02V-GS08
BAS70-02V-GS08

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 70 Volt 200mA Single

Data Sheet

Negotiable
BAS70-04,215
BAS70-04,215

NXP Semiconductors

Schottky (Diodes & Rectifiers) SCHOTTKY 70V 70MA

Data Sheet

0-1: $0.03
1-25: $0.02
25-100: $0.02
100-250: $0.02
BAS70-04W,115
BAS70-04W,115

NXP Semiconductors

Schottky (Diodes & Rectifiers) SCHOTTKY 70V 70MA

Data Sheet

0-1: $0.03
1-25: $0.03
25-100: $0.03
100-250: $0.03
BAS70-04FILM
BAS70-04FILM

STMicroelectronics

Schottky (Diodes & Rectifiers) 200mA 70 Volt

Data Sheet

0-1: $0.05
1-10: $0.04
10-100: $0.04
100-250: $0.04
