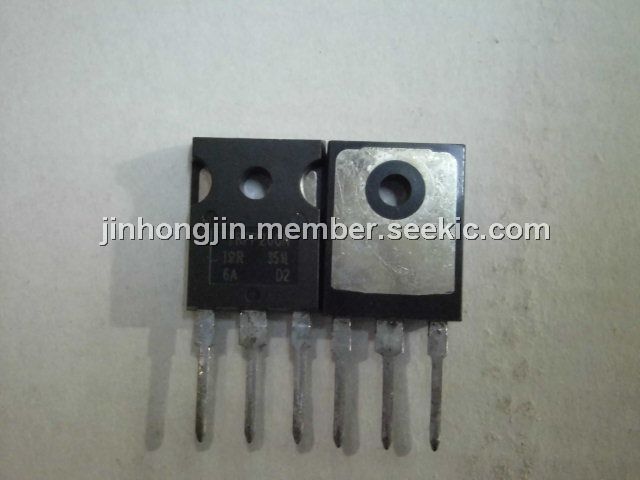

IRFP260NPBF

HEXFET Power MOSFET, 200V, 50A, TO-247AC, IRFP260NPBF, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.58~0.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.58~0.65

PartNumber:: IRFP260NPBF

Brand:: International Rectifier - IR | Pack: TO | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kevin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-22

From Other Seller

Part Number:IRFP260NPBF
US $0.58 - 0.65
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRFP260NPBF is a HEXFET Power MOSFET. It utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

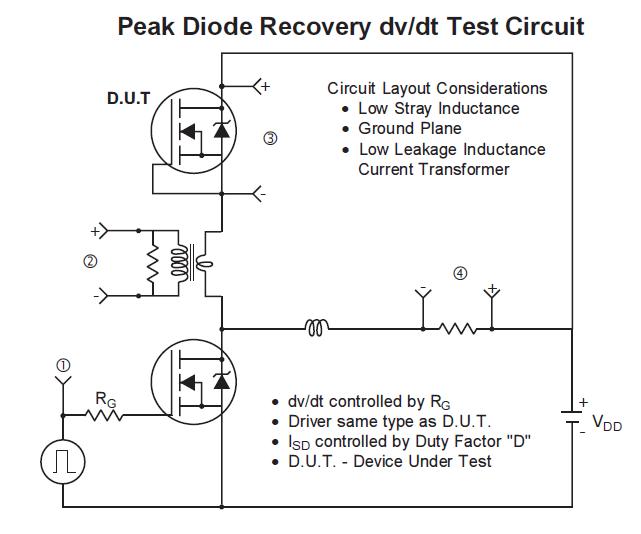

IRFP260NPBF absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V: 50 A; (2)Continuous Drain Current, VGS @ 10V: 35 A; (3)Pulsed Drain Current: 200 A; (4)Power Dissipation: 300 W; (5)Linear Derating Factor: 2.0 W/℃; (6)Gate-to-Source Voltage: ±20 V; (7)Single Pulse Avalanche Energy: 560 mJ; (8)Avalanche Current: 50 A; (9)Repetitive Avalanche Energy: 30 mJ; (10)Peak Diode Recovery dv/dt: 10 V/ns; (11)Operating Junction and Storage Temperature Range: -55 to +175 ℃; (12)Soldering Temperature, for 10 seconds: 300 (1.6mm from case ) ℃; (13)Mounting torque, 6-32 or M3 srew: 10 lbf·in (1.1N·m).

Features

IRFP260NPBF features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Fully Avalanche Rated; (6)Ease of Paralleling; (7)Simple Drive Requirements; (8)Lead-Free.
