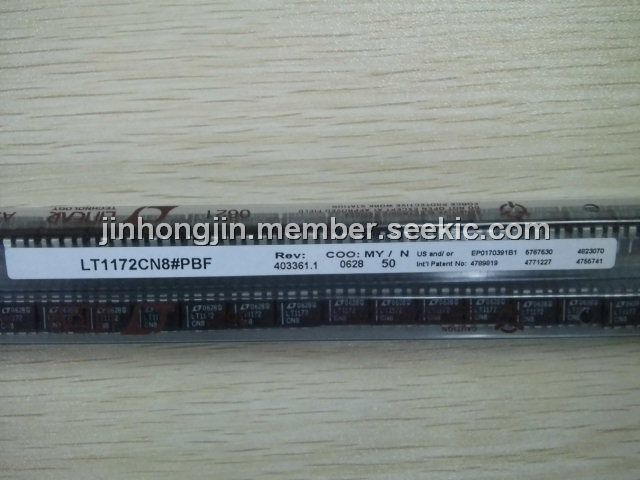

LT1172CN8#PBF

monolithic high power switching regulator, 1.25A, 8DIP, 3V to 60V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.59~1.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.59~1.65

PartNumber:: LT1172CN8#PBF

Brand:: Linear Technology - Linear | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kevin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-25

From Other Seller

Part Number:LT1172CN8#PBF
US $1.59 - 1.65
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

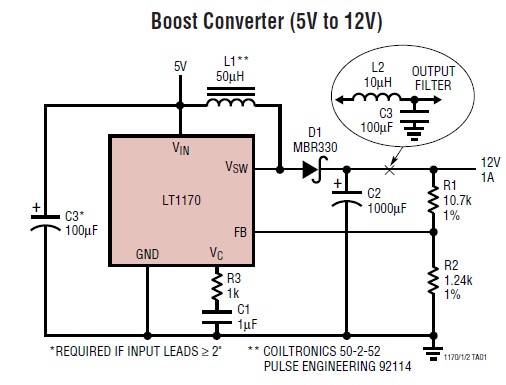

The LT1172CN8#PBF is a monolithic high power switching regulator. It can be operated in all standard switching configurations including buck, boost, flyback, forward, inverting and“Cuk.” A high current, high efficiency switch is included on the die along with all oscillator, control and protection circuitry. Integration of all functions allows the LT1172CN8#PBF to be built in a standard 5-pin TO-3 or TO-220 power package as well as the 8-pin packages. The applications of the LT1172CN8#PBF include: Logic Supply 5V at 10A, 5V Logic to ±15V Op Amp Supply, Battery Upconverter, Power Inverter (+ to –) or (– to +), Fully Floating Multiple Outputs.

Parametrics

LT1172CN8#PBF absolute maximum ratings: (1)Supply Voltage: 40V; (2)Switch Output Voltage: 65V; (3)Feedback Pin Voltage (Transient, 1ms): ±15V; (4)Storage Temperature Range: – 65℃ to 150℃; (5)Lead Temperature (Soldering, 10 sec): 300℃; (6)Operating Junction Temperature Range: 0℃ to 125℃.

Features

LT1172CN8#PBF features: (1)Wide Input Voltage Range: 3V to 60V; (2)Low Quiescent Current: 6mA; (3)Internal 5A Switch (1.25A for LT1172); (4)Shutdown Mode Draws Only 50mA Supply Current; (5)Very Few External Parts Required; (6)Self-Protected Against Overloads; (7)Operates in Nearly All Switching Topologies; (8)Flyback-Regulated Mode Has Fully Floating Outputs; (9)Comes in Standard 5-Pin Packages; (10)LT1172 Available in 8-Pin MiniDIP and Surface Mount Packages; (11)Can Be Externally Synchronized.
