Product Summary

The SN74LVC32ADR is a quadruple 2-input positive-OR gate. It is designed for 1.65V to 3.6V VCC operation.

Parametrics

SN74LVC32ADR absolute maximum ratings: (1)Supply voltage range: -0.5V to 6.5V; (2)nput voltage range: -0.5V to 6.5V; (3)Output voltage range: -0.5V to VCC+0.5V; (4)input clamp current(VI<0): -50mA; (5)Output clamp current(VO<0): -50mA; (6)Continuous output current: ±50mA; (7)Package thermal impedance: 96℃/W; (8)storage temperature range: -65℃ to 150℃; (9)power dissipation: 500mW.

Features

SN74LVC32ADR features: (1)Operate From 1.65 V to 3.6 V; (2)Specified From -40℃ to 85℃, -40℃ to 125℃, and -55℃ to 125℃; (3)Inputs Accept Voltages to 5.5 V; (4)Max t pd of 3.8 ns at 3.3 V; (5)Typical V OLP (Output Ground Bounce) <0.8 V at VCC=3.3V, TA=25℃; (6)Typical V OHV (Output V OH Undershoot)>2V at VCC=3.3V,TA=25℃; (7)Latch-Up Performance Exceeds 250 mA Per JESD 17.

Diagrams

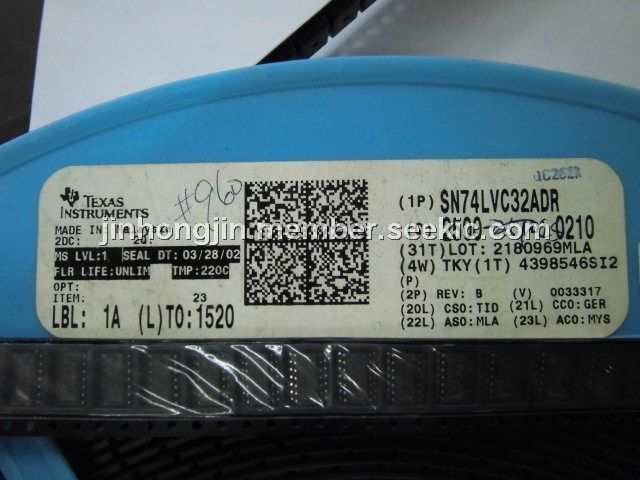

SN74LVC32ADR diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LVC32ADR
SN74LVC32ADR

Texas Instruments

Gates (AND / NAND / OR / NOR) Quad 2-Input

Data Sheet

0-1: $0.24
1-25: $0.16
25-100: $0.13
100-250: $0.11
SN74LVC32ADRE4
SN74LVC32ADRE4

Texas Instruments

Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-OR Gate

Data Sheet

0-1: $0.19
1-25: $0.14
25-100: $0.12
100-250: $0.10
SN74LVC32ADRG4
SN74LVC32ADRG4

Texas Instruments

Gates (AND / NAND / OR / NOR) Quad 2 Input Pos OR Gate

Data Sheet

0-1: $0.19
1-25: $0.14
25-100: $0.12
100-250: $0.10
