Product Summary

The TDZTR24 is a Zener diode.

Parametrics

TDZTR24 absolute maximum ratings: (1)Power dissipation, P: 500mW; (2)Junction temperature, Tj: 150℃; (3)Storage temperature, Tstg: -55 to 150℃; (4)Operating resistance, Topr: -55 to 150℃.

Features

TDZTR24 features: (1)Small mold type. (TUMD2); (2)High reliability.; (3)Can be mounted automatically, using chip mounter.

Diagrams

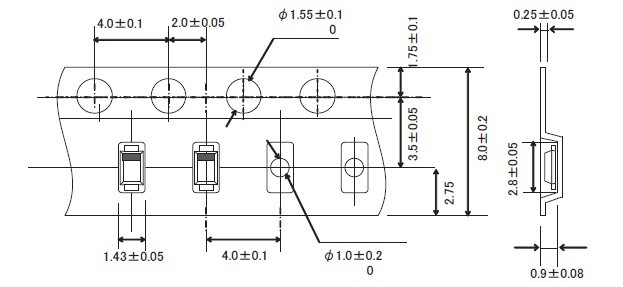

TDZTR24 Taping specifications

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TDZTR24
TDZTR24

ROHM Semiconductor

Zener Diodes 24V 500mW 10mA

Data Sheet

0-1: $0.20
1-25: $0.14
25-100: $0.11
100-250: $0.09
TDZTR24B
TDZTR24B

Rohm Semiconductor

DIODE ZENER 24V 500MW TUMD2

Data Sheet

1-3000: $0.07
