Product Summary
The EM92547BP is a caller ID FSK decoder. It is designed to work in telephone equipment incorporating Calling Number Delivery (CND) capabilities. CND capabilities can be add to equipment such as telephone, adjunct units, answering machines, and facsimile machines, by using the EM92547 and any standard microcontroller IC. The EM92547BP detects and qualifies the incoming ring signal, performs an energy detect on incoming FSK signal, and demodulates the FSK data in accordance with BELL 202 standards. Applications of the EM92547BP include: adjunct units, answering machines, feature phones, fax machines, computer interface products.
Parametrics
EM92547BP absolute maximum ratings: (1)DC supply voltage VDD: -0.5 to 6 V; (2)Input voltage VIN: -0.5 to VDD +0.5 V; (3)DC current drain per pin I: ±10 mA; (4)Power dissipation PD: 20 mW; (5)Operating temperature range TA: 0 to 70 ℃.
Features
EM92547BP features: (1)Compatible with Bellcore GR-30-CORE (formerly as TR-NWT-000030); (2)Compatible with British Telecom (BT) SIN227 & SIN242; (3)FSK demodulator for Bell 202 and ITU-T V.23 (formerly as CCITT V.23); (4)On-chip ring detector; (5)Ring detect and carrier detect output for MCU interrupt; (6)Power down mode operation; (7)On-chip band pass filter; (8)FSK demodulation with energy detect; (9)High input sensitivity; (10)Low current consumption in power down mode; (11)Single supply from 3.5V to 6V; (12)Clock Frequencies: 3.58MHz; (13)Package series: 16-pin DIP.

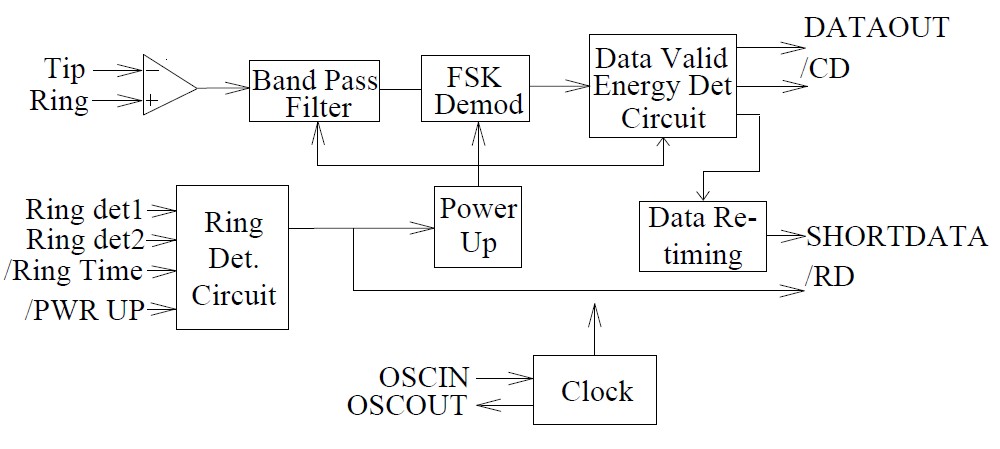

Diagrams
 |
