Product Summary

The GX1-300B-85-2.0 is a line integrated processor, which is specifically designed to power information appliances for entertainment, education, and business. Serving the needs of consumers and business professionals alike, the GX1-300B-85-2.0 is the perfect solution for IA (information appliance) applications such as thin clients, interactive set-top boxes, and personal internet access devices.

Parametrics

GX1-300B-85-2.0 absolute maximum ratings: (1)Operating Case Temperature: –65 to 110 ℃; (2)TSTORAGE Storage Temperature: –65 to 150 ℃; (3)VCC2 Core Supply Voltage: 2.31 V; (4)VCC3 I/O Supply Voltage: 3.6 V; (5)VMAX Voltage On Any Pin: –0.5 to 3.6 V; (6)IIK Input Clamp Current: –0.5 to 10 mA; (7)IOK Output Clamp Current: 25 mA.

Features

GX1-300B-85-2.0 features: (1)Packaging: 352-Terminal Ball Grid Array (BGA) or 320-Pin Staggered Pin Grid Array (SPGA); (2)0.18-micron four layer metal CMOS process; (3)Split rail design: Available 1.8V, 2.0V, or 2.2V core, 3.3V I/O interface; (4)Fully static design; (5)Low typical power consumption: 0.8W @ 1.8V / 200 MHz, 0.95W @ 1.8V / 233 MHz, 1.0W @ 1.8V / 266 MHz, 1.2W @ 2.0V / 300 MHz, 1.4W @ 2.2V / 333 MHz.

Diagrams

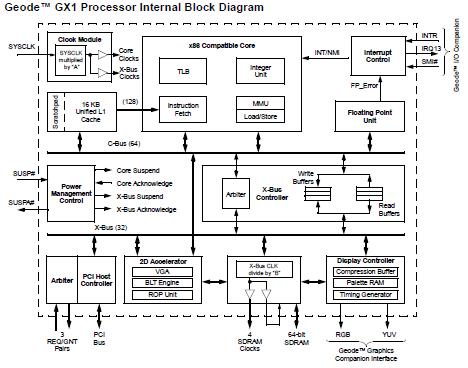

GX1-300B-85-2.0 block diagram
