Product Summary

The LT-600A is a 2-terminal bi-directional, voltage triggered switch. It is designed for ignition circuits used in high pressure HID lighting. Switching voltages for the LT-600A are fixed depending on the part number selected. The gas plasma trigger technology offers very fast switching speeds, resulting in significantly better di/dt values when compared to silicon based SIDAC devices. Applications of the LT-600A include: For switching stored electrical energy (such as capacitive discharge) at predetermined voltages; Designed for ignition circuits used in high pressure HID lighting.

Parametrics

LT-600A absolute maximum ratings: (1)Max Switching Frequency: 100 Hz; (2)Storage Temperature TSTG: -40 to +150℃; (3)Operating Temperature: -40 to +150℃.

Features

LT-600A features: (1)RoHS compliant; (2)Ceramic chamber for ultimate reliability; (3)Very high switching speed once switching voltage has been reached, resulting in high di/dt to be generated enabling the best performance to be extracted from ignition transformers; (4)Tape and reel to EIA 481-1.

Diagrams

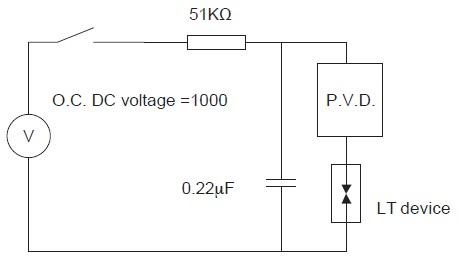

LT-600A diagram
