Product Summary
The FDC37C669-MS is a PC 95 Compatible Super I/O Floppy Disk Controller with Infrared Support utilizes the proven SuperCell technology of SMSC for increased product reliability and functionality. The FDC37C669-MS is PC95 compliant and is optimized for motherboard applications. The device supports both 1 Mbps and 2 Mbps data rates and vertical vertical recording operation at 1 Mbps Data Rate.
Parametrics
FDC37C669-MS absolute maximum ratings: (1)Operating Temperature Range: 0℃ to +70℃; (2)Storage Temperature Range: -55℃ to +150℃; (3)Lead Temperature Range (soldering, 10 seconds): +325℃; (4)Positive Voltage on any pin, with respect to Ground: VCC+0.3V; (5)Negative Voltage on any pin, with respect to Ground: -0.3V; (6)Maximum VCC: +7V.
Features
FDC37C669-MS features: (1)5 Volt Operation; (2)Intelligent Auto Power Management; (3)16 Bit Address Qualification (Optional); (4)2.88MB Super I/O Floppy Disk Controller; (5)Floppy Disk Available on Parallel Port Pins; (6)Enhanced Digital Data Separator: 2 Mbps, 1 Mbps, 500 Kbps, 300 Kbps, 250 Kbps Data Rates; Programmable Precompensation Modes; (7)Serial Ports: Two High Speed NS16C550 Compatible UARTs with Send/Receive 16 Byte FIFOs; Supports 230k and 460k Baud Programmable Baud Rate Generator; Modem Control Circuitry; Infrared - IrDA (HPSIR) and Amplitude Shift Keyed IR (ASKIR); Alternate IR Pins (Optional); 96 Base I/O Address and Eight IRQ Options.

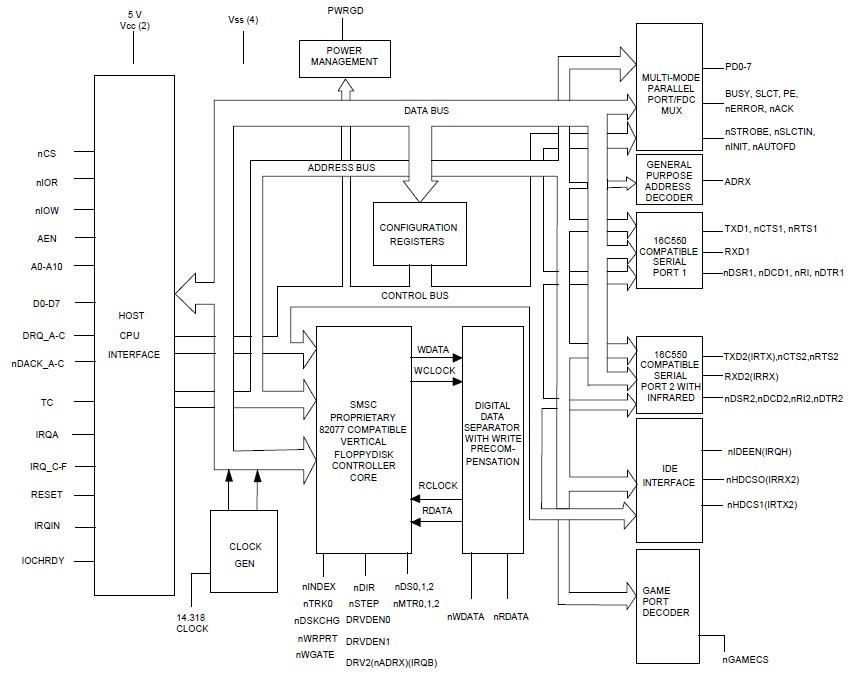

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FDC37C669-MS |
SMSC |
I/O Controller Interface IC Super I/O Controller- Pb Free |
Data Sheet |
|
|
||||||||||||
