Product Summary
The TEA5114A is a RGB switching circuit. It provides RGB switching allowing connections between peri TV plug, internal RGB generator and video processor in a TV set. The input signal black level of the TEA5114A is tied to the same reference voltageon each input in order to haveno differential voltage when switching two RGB generators.
Parametrics
TEA5114A absolute maximum ratings: (1)VCC Supply Voltage: 18 V; (2)Tj Junction Temperature: – 40 to 150 ℃; (3)Tstg Storage Temperature: – 40 to 150 ℃; (4)ZL Minimum Load Resistor on Each Output VCC = 12 V: 300Ω; VCC = 10 V: 150Ω; (5)Tamb Operating Ambient Temperature: 0 to 70 ℃.
Features
TEA5114A features: (1)25mhz bandwidth; (2)crosstalk: 55db; (3)short circuit to ground or vcc protected; (4)anti saturation gain changing video switching.

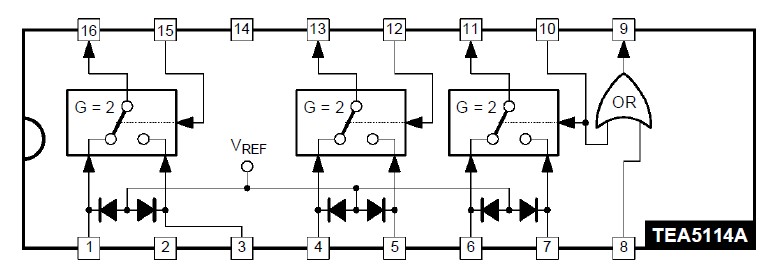

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TEA5114A |
STMicroelectronics |
Video ICs Video Switch |
Data Sheet |
Negotiable |
|
||||
