Product Summary
The PS12033 is a powerex application specific IPM (ASIPM). The PS12033 is an inteligent power module that integrate power device, gate drive and protection circuitry in a compact package for use in small inverter applications up to 20kHz. Use of application specific HVICs allow the designer to reduce inverter size and overall design time. The applications of the PS12033 include Smart Motors, General Purpose Inverters, Small Motor Control.
Parametrics
PS12033 absolute maximum ratings: (1)Power Device Junction Temperature, Tj: -20 to 125℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Case Operating Temperature (See TC Measure Point Illustration), TC: -20 to 100℃; (4)Mounting Torque, M3.5 Mounting Screws: 11.25 in-lb; (5)Module Weight (Typical): 127 Grams; (6)Isolation Voltage, VISO: 2500 Volts.
Features
PS12033 features: (1)Rectifier Bridge for 3-phase AC-to-DC Power Conversion; (2)3-phase IGBT Inverter Bridge; (3)Integrated HVICs for Gate Drive, Protection and System Control Functions; (4)Built-in Thermistor; (5)Direct Connection to DSP/CPU.

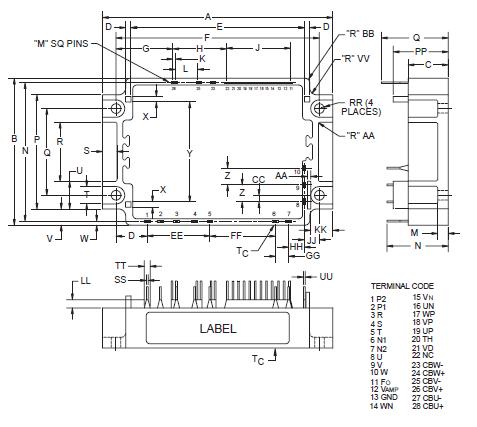

Diagrams

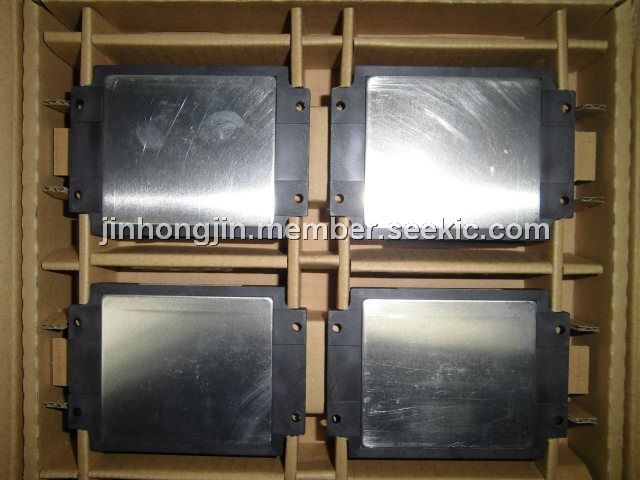

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS12033 |
|
MOD IPM 3PHASE IGBT 1200V 5A |
Data Sheet |
Negotiable |
|
||||||
