Product Summary

The PD438B is a high speed and sensitive PIN photodiode in a cylindrical side view plastic package. The epoxy package itself is an IR filter, spectrally matched to IR emitter. The applications of the PD438B include: High speed photo detector, Camera, Optoelectronic switch, VCRs, Video camera.

Parametrics

PD438B absolute maximum ratings: (1)Reverse Voltage VR: 32 V; (2)Power Dissipation Pd: 150 mW; (3)Lead Soldering Temperature Tsol: 260 ℃; (4)Operating Temperature Topr: -25 to +85 ℃; (5)Storage Temperature Tstg: -40 to +85 ℃.

Features

PD438B features: (1)Fast response times; (2)High photo sensitivity; (3)Small junction capacitance; (4)Pb free; (5)The product itself will remain within RoHS compliant version.

Diagrams

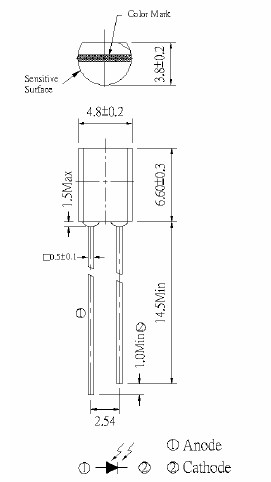

PD438B dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PD438B
PD438B


PHOTODIODE PIN IR 4.8MM CYL BK

Data Sheet

0-1: $0.41
1-10: $0.32
10-100: $0.23
100-250: $0.21
250-500: $0.18
500-1000: $0.14
1000-2500: $0.12
2500-5000: $0.12
PD438B/L1
PD438B/L1


PHOTODIODE PIN IR 4.8MM CYL BK

Data Sheet

Negotiable
PD438B/S46
PD438B/S46


PHOTODIODE PIN IR 4.8MM CYL BK

Data Sheet

0-1: $0.41
1-10: $0.32
10-100: $0.23
100-250: $0.20
250-500: $0.17
500-1000: $0.14
1000-2500: $0.13
2500-5000: $0.12
PD438B-C1
PD438B-C1

Other


Data Sheet

Negotiable
PD438B-C2
PD438B-C2

Other


Data Sheet

Negotiable
PD438B-L1
PD438B-L1

Other


Data Sheet

Negotiable
PD438B-S46
PD438B-S46

Other


Data Sheet

Negotiable
