MC74HC4060N

14-stage binary ripple counter, DIP-16, 1 μA, 2 to 6 V, 750mW, MC74HC4060N

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.48~0.51 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.48~0.51

PartNumber:: MC74HC4060N

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 90+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kevin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-25

From Other Seller

Part Number:MC74HC4060N
US $0.48 - 0.51
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

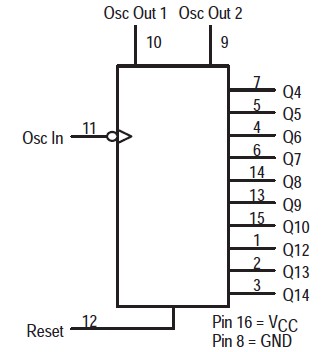

The MC74HC4060N is a 14-stage binary ripple counter with oscillator. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The MC74HC4060N consists of 14 master–slave flip–flops and an oscillator with a frequency that is controlled either by a crystal or by an RC circuit connected externally. The output of each flip–flop feeds the next and the frequency at each output is half of that of the preceding one. The state of the MC74HC4060N advances on the negative–going edge of the Osc In. The active–high Reset is asynchronous and disables the oscillator to allow very low power consumption during stand–by operation.

Parametrics

MC74HC4060N absolute maximum ratings: (1)VCC DC Supply Voltage (Referenced to GND): -0.5 to + 7.0 V; (2)Vin DC Input Voltage (Referenced to GND): -0.5 to VCC + 0.5 V; (3)Vout DC Output Voltage (Referenced to GND): -0.5 to VCC + 0.5 V; (4)Iin DC Input Current, per Pin: ±20mA; (5)Iout DC Output Current, per Pin: ±25mA; (6)ICC DC Supply Current, VCC and GND Pins: ±50mA; (7)PD Power Dissipation in Still Air, Plastic DIP: 750mW; (8)Tstg Storage Temperature Range: -65 to + 150℃; (9)TL Lead Temperature, 1 mm from Case for 10 Seconds Plastic DIP, SOIC or TSSOP Package: 260℃.

Features

MC74HC4060N features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS, and TTL; (3)Operating Voltage Range: 2 to 6 V; (4)Low Input Current: 1 μA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 390 FETs or 97.5 Equivalent Gates.
