Product Summary

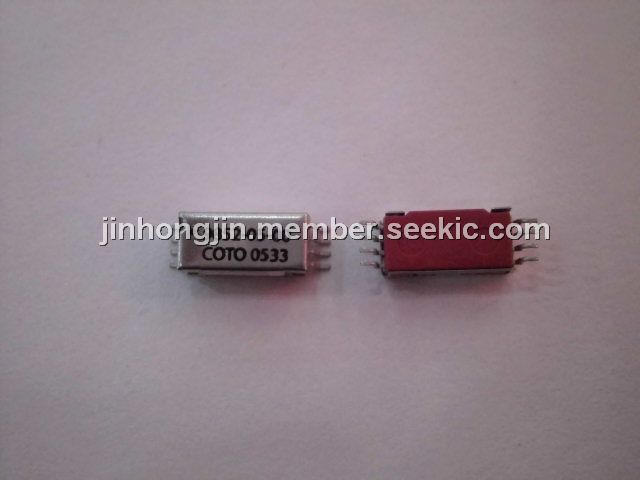

The 9852-05-00 is a surface mount reed relay. It is ideally suited to the needs of Automated Test Equipment, Instrumentation and Telecommunications requirements, Coto’s 9800 Series. It is an ultra-miniature Surface Mount Reed Relay that combines small size with exceptional RF performance. The 9852-05-00 extends life at ATE loads 3X or more utilizing Coto’s proprietary switch technology. The external Magnetic Shield reduces interaction between parts in high density boards. The 9852-05-00 adds a form C capability. Small size plus added features allow for high density packing, and make it ideal for designs such as high speed, high pin count VLSI testers where speed, size and performance are all needed.

Parametrics

9852-05-00 specifications: (1)Nom. coil voltage: 5VDC; (2)max. coil voltage: 6VDC; (3)Coil resistance: 110Ω; (4)Operate voltage: 3.8VDC-max; (5)Release voltage: 0.4VDC-min; (6)Switching voltage: 30Volts; (7)Switching current: 0.1Amps; (8)Carry current: 0.2Amps; (9)Contact rating: 3Watts; (10)Static contact resistance(max. init): 0.150Ω; (11)Dynamic contact resistance(max. init): 0.150Ω.

Features

9852-05-00 features: (1)Available in Axial, Gull wing and J lead configurations; (2)Tape and Reel packaging available; (3)High reliability, hermetically sealed contacts for long life; (4)High Insulation Resistance - 1012 Ω minimum (Form A); (5)Coaxial shield for 50 Ω impedance; (6)6.5 GHz bandwidth for RF and Pulse switching (fast rise time pulses); (7)External Magnetic Shield.

Diagrams

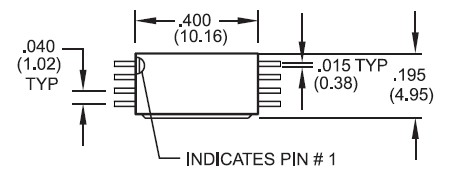

9852-05-00 dimensions
