Product Summary

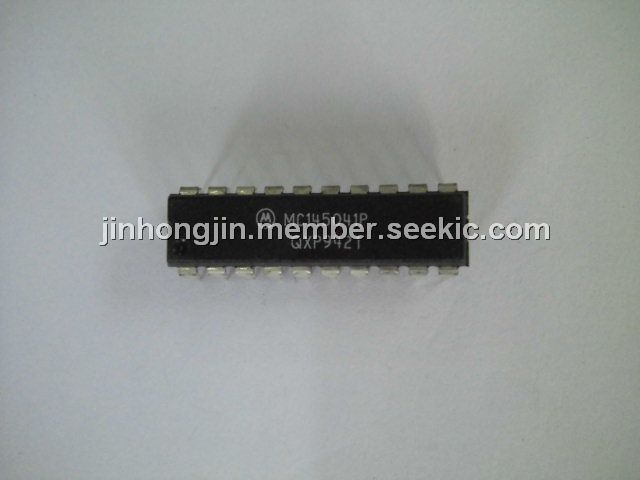

The MC145041P is a low-cost 8-bit A/D Converter with serial interface ports to provide communication with microprocessors and microcomputers. The MC145041P operates from a single power supply with a maximum nonlinearity of ± 1/2 LSB over the full temperature range. No external trimming is required. The MC145041P has an internal clock and an end–of–conversion signal (EOC) is provided.
Parametrics
MC145041P absolute maximum ratings: (1)VDD: -0.5 to 7.0V; (2)Vref: VAG to VDD+0.1 V; (3)VAG: VSS-0.1 to Vref V; (4)Vin: VSS-1.5 to VDD+1.5 V; (5)Vout: VSS-0.5 to VDD+0.5 V; (6)Lin: ±20mA; (7)Iout: ±25mA; (8)IDD, ISS: ±50mA; (9)Tstg: -65 to 150℃; (10)TL: 260℃.
Features
MC145041P features: (1)Operating Voltage Range: VDD = 4.5 to 5.5 Volts; (2)Successive Approximation Conversion Time:20 μs Maximum (Internal Clock); (3)11 Analog Input Channels with Internal Sample and Hold; (4)0- to 5-Volt Analog Input Range with Single 5-Volt Supply; (5)Ratiometric Conversion; (6)Separate Vref and VAG Pins for Noise Immunity; (7)Wide Vref Range; (8)No External Trimming Required; (9)Direct Interface to Motorola SPI and National MICROWIRE Serial Data Ports; (10)TTL/NMOS-compatible Inputs May be Driven with CMOS; (11)Outputs are CMOS, NMOS or TTL Compatible; (12)Very Low Reference Current Requirements; (13)Low Power Consumption: 11 mW; (14)Internal Test Mode for Self Test.
