Product Summary

The ADUM1200ARZ-RL7 is a dual-channel digital isolator based on Analog Device Coupler technology. Combining high speed CMOS and monolithic transformer technology, the isolation component of the ADUM1200ARZ-RL7 provides outstanding performance characteristics superior to alternatives such as optocoupler devices. By avoiding the use of LEDs and photodiodes, iCoupler device of the ADUM1200ARZ-RL7 removes the design difficulties commonly associated with optocouplers. The typical optocoupler of the ADUM1200ARZ-RL7 concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The applications of the ADUM1200ARZ-RL7 are Size-critical multichannel isolation, SPI interface/data converter isolation, RS-232/RS-422/RS-485 transceiver isolation, Digital field bus isolation.

Parametrics

ADUM1200ARZ-RL7 absolute maximum ratings: (1)Storage Temperature TST: -55 to 150 ℃; (2)Ambient Operating Temperature TA: -40 to 105 ℃; (3)Supply Voltages VDD1, VDD2: -0.5 to 7.0 V; (4)Input Voltage,1, 2, VIA, VIB: -0.5; (5)VDDI: + 0.5 V; (6)Output Voltage1, 2 VOA, VOB: -0.5; (7)VDDO: + 0.5V; (8)Average Output Current, per Pin3 IO: -35 to 35 mA; (9)Common-Mode Transients: -100 to +100 kV/μs.

Features

ADUM1200ARZ-RL7 features: (1)Narrow body SOIC 8-lead package; (2)Low power operation; (3)Bidirectional communication; (4)3 V/5 V level translation; (5)High temperature operation: 105℃; (6)High data rate: dc to 25 Mbps (NRZ); (7)Precise timing characteristics; (8)Precise timing characteristics; (9)High common-mode transient immunity: > 25 kV/μs; (10)Safety and regulatory approvals.

Diagrams

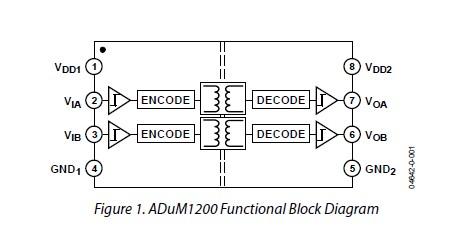

ADUM1200ARZ-RL7 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADUM1200ARZ-RL7
ADUM1200ARZ-RL7

IC ISOLATOR DIGITAL DUAL 8-SOIC
Data Sheet
0-1: $1.87
1-10: $1.67
10-25: $1.50
25-100: $1.37
100-250: $1.24
250-500: $1.11
