Product Summary
The RB751SL is a 30V Schottky Barrier Diode.
Parametrics
RB751SL absolute maximum ratings: (1)Maximum Repetitive Reverse Voltage:30 V; (2)Average Rectified Forward Current:30 mA; (3)Forward Surge Current( 8.3mS Single Half Sine-Wave):200 mA; (4)Power Dissipation:227 mW; (5)Operating Junction & Storage Temperature Range:-55鈩?to +150鈩?
Features
RB751SL features: (1)Low Forward Voltage Drop; (2)Fast switching; (3)Very Small and Thin SMD package; (4)Profile height, 0.43mm max; (5)Footprint, 1.0 x 0.6 mm.
Diagrams
<IMG alt="RB751SL connection diagram" src="http://www.seekic.com/uploadfile/ic-mfg/201253123251684.jpg" border=0>
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

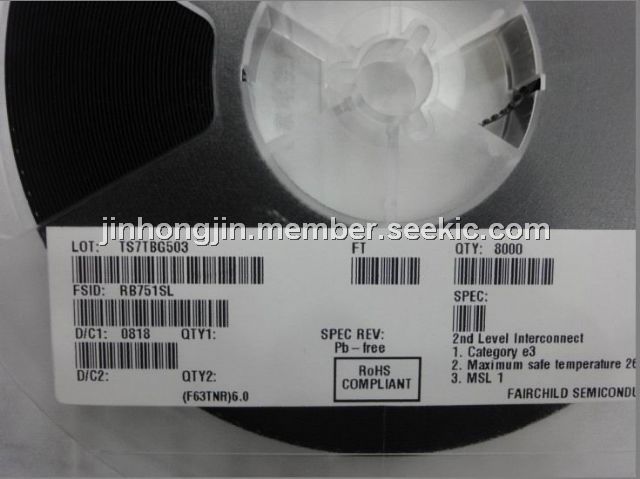

![]() RB751SL |
![]() Fairchild Semiconductor |
![]() Schottky (Diodes & Rectifiers) 30V 0.03A |
![]() Data Sheet |
![]()
|
|
||||||||||||
