Product Summary

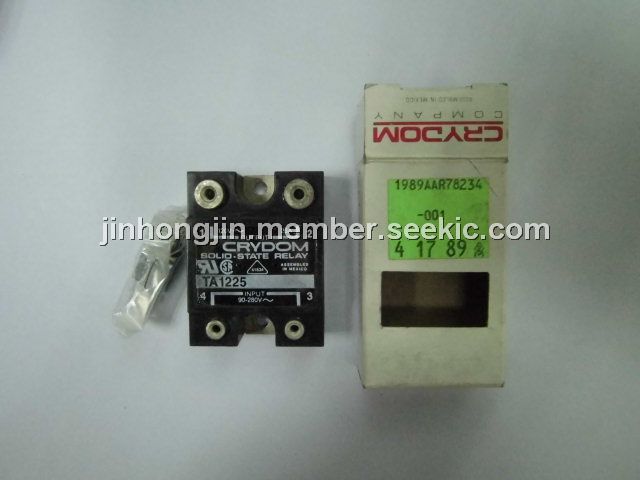

The TA1225 is a SPST-NO relay. Featuring state-of-the-art Surface Mount Technology, the TA1225 delivers proven reliability in the most demanding applications. Manufactured in Crydom ISO 9001 Certified facility for optimum product performance and reliability.

Parametrics

TA1225 absolute maximum ratings: (1)Max. Load Current: 24 to 140Vrms; (2)Max. Load Current: 25Arms; (3)Min. Load Current: 40mArms; (4)Min. Load Current: 400Vpk; (5)Max. Surge Current: 250Apk; (6)Max. On-State Voltage Drop @ Rated Current: 1.6Vpk; (7)Thermal Resistance Junction to Case: 1.02℃/W.

Features

TA 1225 features: (1)Zero voltage switching; (2)Panel mount; (3)600V transient capability; (4)Internal snubber; (5)DC or AC control; (6)Triac output.

Diagrams

TA1225 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TA1225
TA1225

Crydom

Solid State Relays 25A 120VAC AC

Data Sheet

0-7: $46.96
7-10: $45.86
10-20: $44.81
20-50: $43.75
