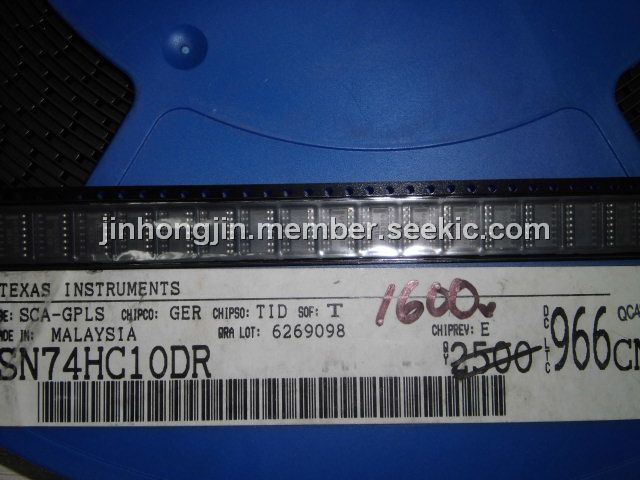

Product Summary

The SN74HC10DR is a triple 3-input positive-nand gate.

Parametrics

SN74HC10DR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74HC10DR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 20μA Max ICC; (4)Typical tpd = 9 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max.

Diagrams

SN74HC10DR diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74HC10DR
SN74HC10DR

Texas Instruments

Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-NAND gates

Data Sheet

0-1: $0.20
1-25: $0.16
25-100: $0.12
100-250: $0.08
SN74HC10DRE4
SN74HC10DRE4

Texas Instruments

Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-NAND gates

Data Sheet

0-1: $0.23
1-25: $0.16
25-100: $0.12
100-250: $0.09
SN74HC10DRG4
SN74HC10DRG4

Texas Instruments

Gates (AND / NAND / OR / NOR) Triple 3 input POS NAND gates

Data Sheet

0-1: $0.23
1-25: $0.16
25-100: $0.12
100-250: $0.09
