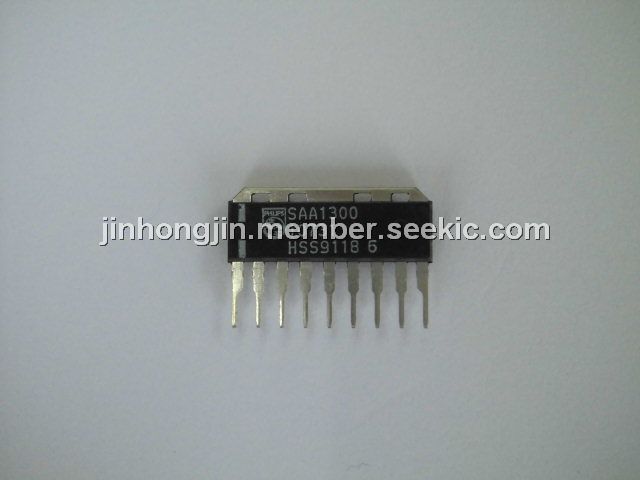

SAA1300

tuner switching circuit, ZIP-9, 4 to 12 V, 5 to 15 mA, 825 mW, SAA1300

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.61~1.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.61~1.85

PartNumber:: SAA1300

Brand:: Philips Electronics India Limited - PHILIPS | Pack: ZIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kevin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-25

From Other Seller

Part Number:SAA1300
US $1.61 - 1.85
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
Quantity:

piece

Product Summary

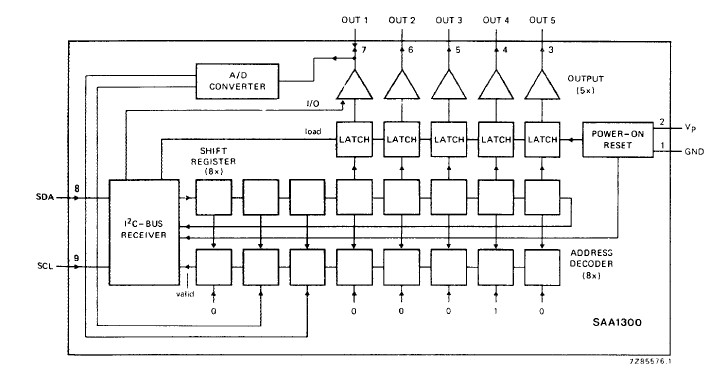

The SAA1300 is a tuner switching circuit. It is for switching on and off the supply lines of various circuit parts via an I2C bus signal. Furthermore, the SAA1300 can be used to supply current for switching diodes in radio and television tuners. The SAA1300 contains 5 output stages, which are capable of supplying up to 85 mA in the ON state or sinking up to -100 mA in the OFF state.

Parametrics

SAA1300 absolute maximum ratings: (1)Supply voltage VP max.: 13,2 V; (2)Input voltage range at SDA, SCL VI: -0,5 to + 6,0 V; (3)Input voltage range at OUT 1 VI: -0,5 to + 12,5 V; (4)Output voltage range at OUT 1 to OUT 5 VO: -0,5 to + 12,5 V; (5)Input current at SDA, SCL II: max. 20 mA; (6)Input current at OUT 1 II: max. 20 mA; (7)Total power dissipation Ptot: max. 825 mW; (8)Storage temperature range Tstg: -40 to + 125 ℃; (9)Operating ambient temperature ranges Tamb: -20 to + 80 ℃.

Features

SAA1300 characteristics: (1)Supply voltage range VP: 4 to 12 V; (2)Supply current 5 outputs LOW IPL: 5 to 15 mA; 5 outputs HIGH IPH: 30 to 70 mA; (3)Power on reset level output stage in OFF condition VPR: 3,5 to 3,8 V; (4)Maximum power dissipation Pmax: 650 mW.
