MC74HC4040N

12-stage binary ripple counter, DIP-16, 2 to 6 V, 1 μA, 750 mW, MC74HC4040N

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.48~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.48~0.55

PartNumber:: MC74HC4040N

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 90+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kevin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-25

From Other Seller

Part Number:MC74HC4040N
US $0.48 - 0.55
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

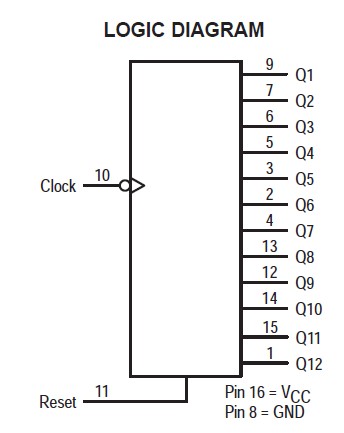

The MC74HC4040N is a 12-stage binary ripple counter. It is identical in pinout to the standard CMOS MC14040. The MC74HC4040N inputs are compatible with standard CMOS outputs; with pullup resistors, it is compatible with LSTTL outputs. The MC74HC4040N consists of 12 master–slave flip–flops. The output of each flip–flop feeds the next and the frequency at each output is half of that of the preceding one. The state counter advances on the negative–going edge of the Clock input. Reset is asynchronous and active–high.

Parametrics

MC74HC4040N absolute maximum ratings: (1)VC DC Supply Voltage (Referenced to GND): -0.5 to + 7.0 V; (2)Vin DC Input Voltage (Referenced to GND): -0.5 to VCC + 0.5 V; (3)Vout DC Output Voltage (Referenced to GND): -0.5 to VCC + 0.5 V; (4)Iin DC Input Current, per Pin: ±20 mA; (5)Iout DC Output Current, per Pin: ±25 mA; (6)ICC DC Supply Current, VCC and GND Pins: ±50 mA; (7)PD Power Dissipation in Still Air, Plastic DIP: 750 mW; (8)Tstg Storage Temperature Range: -65 to + 150 ℃; (9)TL Lead Temperature, 1 mm from Case for 10 Seconds Plastic DIP, SOIC or TSSOP Package: 260 ℃.

Features

MC74HC4040N features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS, and TTL; (3)Operating Voltage Range: 2 to 6 V; (4)Low Input Current: 1 μA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 398 FETs or 99.5 Equivalent Gates.
