Product Summary

The LTR-4206E is an NPN T-1 Standard Phototransistor. The lensing effect of the package allows an acceptance half angle of 10 measured from the optical axis to the half power point. The LTR-4206E is a special dark plastic package that cut the visible light and suitable for the detectors of infrared application.

Parametrics

LTR-4206E absolute maximum ratings: (1)Power Dissipation: 100mW; (2)Collector-Emitter Voltage: 30V; (3)Emitter-Collector Voltage: 5V; (4)Operating Temperature Range: -40 to +85 ℃; (5)Storage Temperature Range: -55 to +100 ℃; (6)Lead Soldering Temperature[1.6mm (.063 in.) from body]: 260 ℃ for 5 Seconds.

Features

LTR-4206E features: (1)Wide range of collector currents; (2)Lens for high sensitivity; (3)Low cost plastic package.

Diagrams

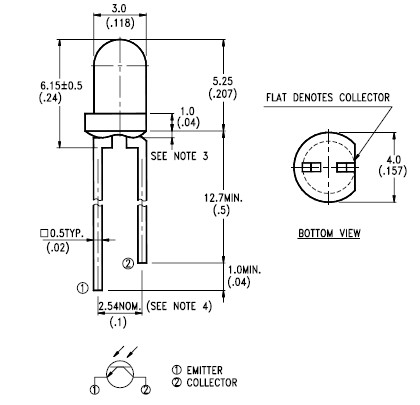

LTR-4206E dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LTR-4206E
LTR-4206E
Lite-On
Photodetector Transistors Phototrans Filtered
Data Sheet
0-1: $0.08
1-10: $0.07
10-50: $0.07
50-100: $0.06
