Product Summary

The IHLP-2525CZ-01 is a low profile, high current inductor.

Parametrics

IHLP-2525CZ-01 absolute maximum ratings: (1)Inductance: 1.0 μH; (2)Capacitance: 20 %; (3)Maximum DC current: 7 Amps; (4)Maximum DC resistance: 105 mohms; (5)Self-resonant frequency: 5MHz.

Features

IHLP-2525CZ-01 features: (1)Lowest height (3.0mm) in this package footprint; (2)Shielded construction; (3)Frequency range up to 5.0MHz; (4)Lowest DCR/μH, in this package size; (5)Handles high transient current spikes without saturation; (6)Ultra low buzz noise, due to composite construction; (7)100% Lead (Pb)-free and RoHS compliant.

Diagrams

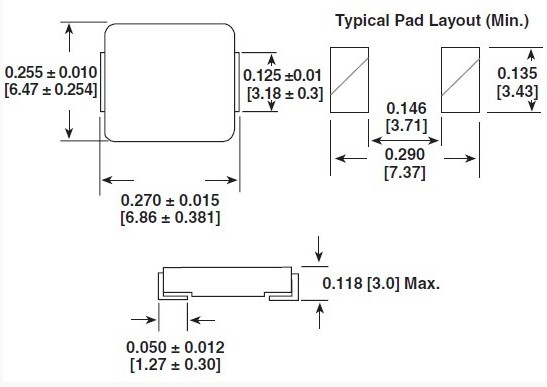

IHLP-2525CZ-01 diagram
