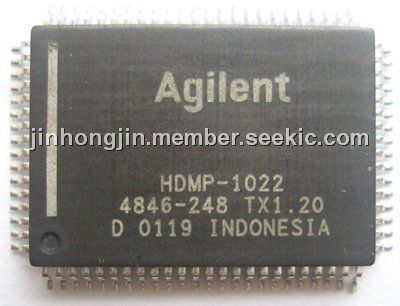

HDMP-1022

HDMP-1022, Gigabit Rate transmitter, Agilent Technologies, QFP-80, 150-1500 MBaud

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.79~9.99 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.79~9.99

PartNumber:: HDMP-1022

Brand:: Agilent Technologies - Agilent | Pack: QFP | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kevin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-09

From Other Seller

Part Number:HDMP-1022
US $8.79 - 9.99
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

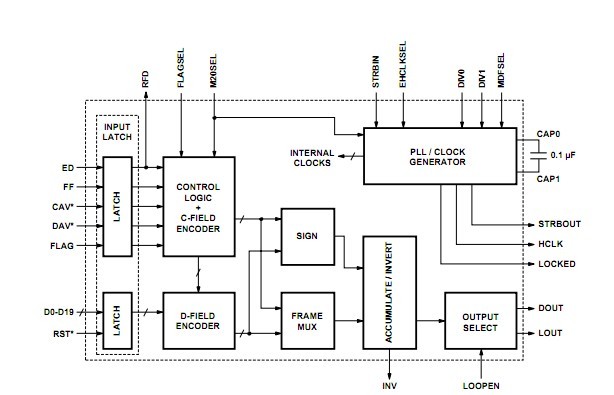

The HDMP-1022 transmitter is used to build a high-speed data link for point-to-point communication. The monolithic silicon bipolar transmitter chip and receiver chip are each provided in a standard aluminum M-Quad 80 package. From the user viewpoint, the HDMP-1022 can be thought of as providing a virtual ribbon cable interface for the transmission of data. Parallel data (a frame) loaded into the Tx (transmitter) chip is delivered to the Rx(receiver) chip over a serial channel, which can be either a coaxial copper cable or optical link. The applications of the HDMP-1022 are: (1)Backplane/Bus Extender; (2)Video, Image Acquisition; (3)Point to Point Data Links; (4)Implement SCI-FI Standard; (5)Implement Serial HIPPI Specification.

Parametrics

HDMP-1022 absolute maximum ratings: (1)VCC Supply Voltage: -0.5 to 7.0V; (2)VIN,TTL TTL Input Voltage: -0.7 to VCC + 0.5 V; (3)VIN,BLL H50 Input Voltage: VCC - 2.0 to VCC + 0.5V ; (4)IO,TTL TTL Output Source Current: +13mA ; (5)Tstg Storage Temperature: -40 to +130℃; (6)TJ Junction Temperature: -40 to +130℃; (7)Tmax Maximum Assembly Temperature (for 10 seconds maximum): +260℃.

Features

HDMP-1022 features: (1)Transparent, Extended Ribbon Cable Replacement; (2)Implemented in a Low Cost Aluminum M-Quad 80 Package; (3)High-Speed Serial Rate 150-1500 MBaud; (4)Standard TTL Interface 16, 17, 20, or 21 Bits Wide; (5)Reliable Monolithic Silicon Bipolar Implementation; (6)On-Chip Phase-Locked Loops; (7)Transmit Clock Generation; (8)Receive Clock Extraction.
