Product Summary

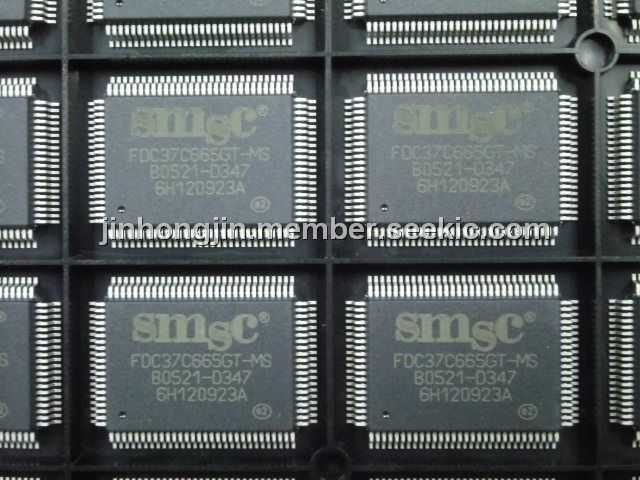

The FDC37C665GT-MS is a High-Performance Multi-Mode Parallel Port Super I/O Floppy Disk Controller. The FDC37C665GT-MS utilizes SMSC’s proven SuperCell technology for increased product reliability and functionality. The FDC37C665GT-MS is optimized for motherboard applications. The FDC37C665GT-MS is hardware compatible with the FDC37C651 and FDC37C661 in the Standard and Enhanced Parallel Port Modes.
Parametrics
FDC37C665GT-MS absoltue maximum ratings: (1)Operating Temperature Range: 0 to +70℃; (2)Storage Temperature Range: -55 to +150℃; (3)Lead Temperature Range (soldering, 10 seconds): +325℃; (4)Positive Voltage on any pin, with respect to Ground: Vcc+0.3V; (5)Negative Voltage on any pin, with respect to Ground: -0.3V; (6)Maximum Vcc: +7V.
Features
FDC37C665GT-MS features: (1)Low Cost Implementation - 24 MHz Crystal; (2)No Filter Components Required; (3)Ease of Test and Use, Lower System Cost, and Reduced Board Area; (4)1 Mb/s, 500 Kb/s, 300 Kb/s, 250 Kb/s Data Rates; (5)Supports Floppy Disk and Tape Drives; (6)Programmable Precompensation Modes.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FDC37C665GT-MS |
SMSC |
I/O Controller Interface IC Super I/O Controller- Pb Free |
Data Sheet |
Negotiable |
|
||||||||||||
