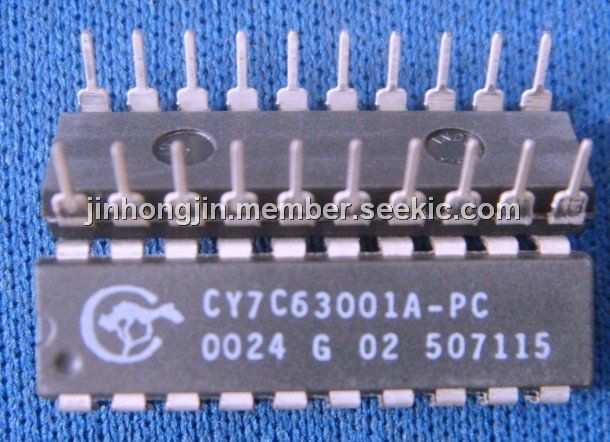

CY7C63001A-PC

OPT microcontroller, 8 BIT, 12MHz, 20-DIP, 4 V ~ 5.25 V, 300 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.35~1.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.35~1.65

PartNumber:: CY7C63001A-PC

Brand:: Cypress Semiconductor - Cypress | Pack: DIP | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kevin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-02

From Other Seller

Part Number:CY7C63001A-PC
US $1.35 - 1.65
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

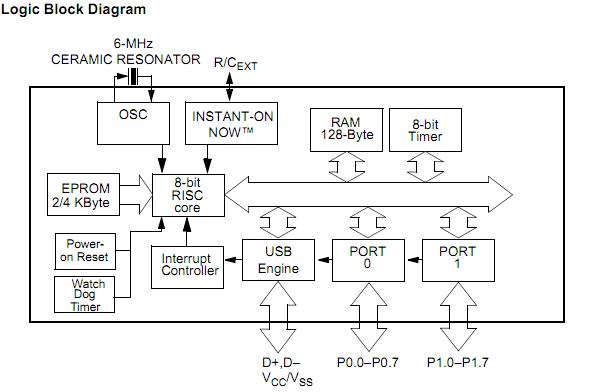

The CY7C63001A-PC is an 8-bit RISC One Time Programmable (OTP) microcontroller with a built-in 1.5-Mbps USB Serial Interface Engine (SIE). The microcontroller features 35 instructions that are optimized for USB applications. In addition, the CY7C63001A-PC features 128 bytes of internal RAM and either 2 or 4 Kbytes of program memory space. The CY7C63001A-PC accepts a 6-MHz ceramic resonator as its clock source. This clock signal is doubled within the chip to provide a 12MHz clock for the microprocessor.

Parametrics

CY7C63001A-PC absolute maximum ratings: (1)Storage Temperature:–65 to +150℃; (2)Ambient Temperature with Power Applied:–0 to +70℃; (3)Supply Voltage on VCC Relative to VSS:–0.5V to +7.0V; (4)DC Input Voltage: –0.5V to +VCC+0.5V; (5)DC Voltage Applied to Outputs in High-Z: –0.5V to +VCC+0.5V; (6)Max. Output Current into Port 1: 60 mA; (7)Max. Output Current into Non-Port 1 Pins: 10 mA; (8)Power Dissipation: 300 mW; (9)Static Discharge Voltage: >2000V ; (10)Latch-up Current: >200 mA.

Features

CY7C63001A-PC features: (1)Low-cost solution for low-speed USB peripherals such as mouse, joystick, and gamepad; (2)USB Specification Compliance; (3)8-bit RISC microcontroller; (4)Internal memory; (5)I/O ports; (6)8-bit free-running timer; (7)Watch dog timer (WDT); (8)Internal power-on reset (POR); (9)Instant-On Now for Suspend and Periodic Wake-up Modes; (10)Improved output drivers to reduce EMI; (11)Operating voltage from 4.0V to 5.25 VDC; (12)Operating temperature from 0 to 70 degree Celsius; (13)Available in space saving and low cost 20-pin PDIP, 20-pin SOIC, 24-pin SOIC and 24-pin QSOP packages; (14)Industry standard programmer support.
