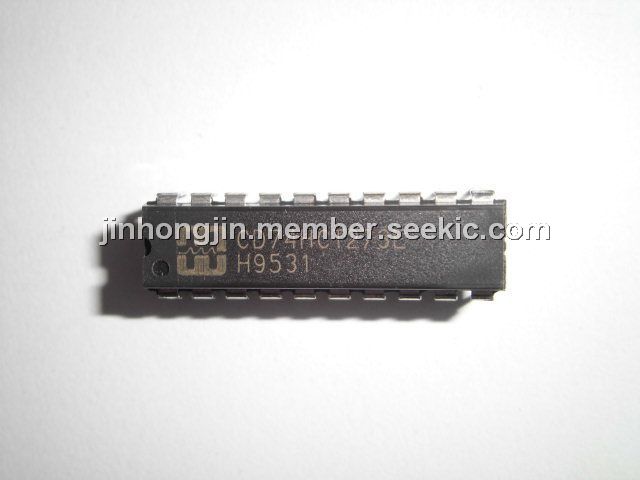

Product Summary
The CD74HCT273E is a high speed octal D-Type flip-flop. It is manufactured with silicon-gate CMOS technology. The CD74HCT273E possesses the low power consumption of standard CMOS integrated circuits. Information at the D inputis transferred to the Q outputs on the positive-going edge of the clock pulse. All eight flip-flops of the CD74HCT273E are controlled by a common clock (CP) and a common reset (MR). Resetting is accomplished by a low voltage level independent of the clock. All eight Q outputs are reset to a logic 0.
Parametrics
CD74HCT273E absolute maximum ratings: (1)DC Supply Voltage, VCC: -0.5V to 7V; (2)DC Input Diode Current, IIK For VI < -0.5V or VI > VCC + 0.5V: ±20mA; (3)DC Output Diode Current, IOK For VO < -0.5V or VO > VCC + 0.5V: ±20mA; (4)DC Drain Current, per Output, IO For -0.5V < VO < VCC + 0.5V: ±25mA; (5)DC Output Source or Sink Current per Output Pin, IO For VO > -0.5V or VO < VCC + 0.5V: ±25mA; (6)DC VCC or Ground Current, ICC: ±50mA.
Features
CD74HCT273E features: (1)Common Clock and Asynchronous Master Reset; (2)Positive Edge Triggering; (3)Buffered Inputs; (4)Typical fMAX = 60MHz at VCC = 5V, CL = 15pF, TA = 25oC; (5)Fanout (Over Temperature Range) Standard Outputs: 10 LSTTL Loads, Bus Driver Outputs: 15 LSTTL Loads; (6)Wide Operating Temperature Range: -55℃ to 125℃; (7)Balanced Propagation Delay and Transition Times; (8)Significant Power Reduction Compared to LSTTL Logic ICs.

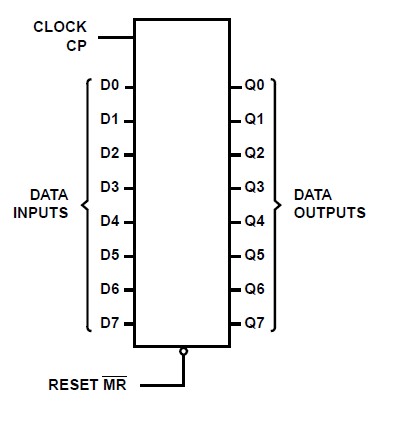

Diagrams
