Product Summary

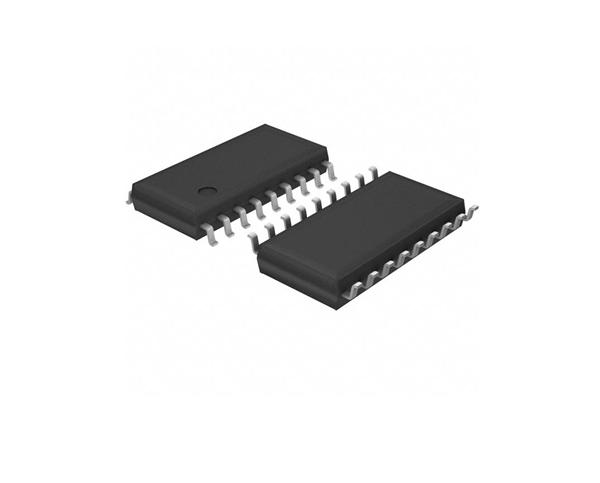

The BU2092F-E2 is a serial-in-parallel-out driver. It incorporates a built-in shift register and a latch circuit to control a maximum of 24 LED by a 4-line interface, linked to a microcontroller. The BU2092F-E2 is designed for AV equipment such as, audio stereo sets, videos and TV sets, PCs, control microcontroller mounted equipment.

Parametrics

BU2092F-E2 absolute maxing ratings: (1)Power Supply Voltage VDD: -0.3 to +7.0 V; (2)Power dissipation 1 Pd1: 450 (SOP) mW; (3)Power dissipation 2 Pd2: 550 (SOP) mW; (4)Input Voltage VIN: VSS-0.3 to VDD+0.3 V; (5)Output Voltage Vo: VSS to +25.0 V; (6)Operating Temperature Topr: -25 to +75 ℃; (7)Storage Temperature Tstg: -55 to +125 ℃.

Features

BU2092F-E2 features: (1)LED can be driven directly.; (2)Parallel output of a maximum of 24 bit; (3)Operational on low voltage (2.7V to 5.5V).

Diagrams

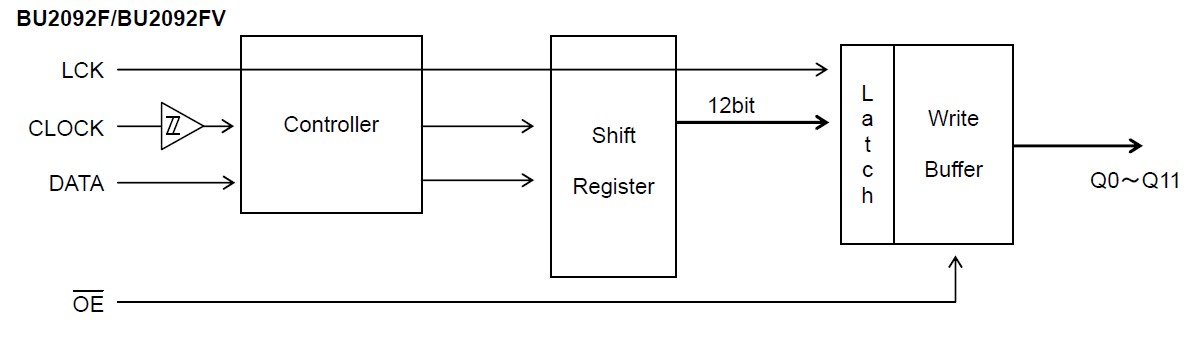

BU2092F-E2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BU2092F-E2
BU2092F-E2
ROHM Semiconductor
Power Driver ICs IC 12BIT S-IN P-OUT
Data Sheet
0-1: $0.96
1-25: $0.79
25-100: $0.64
100-500: $0.48
