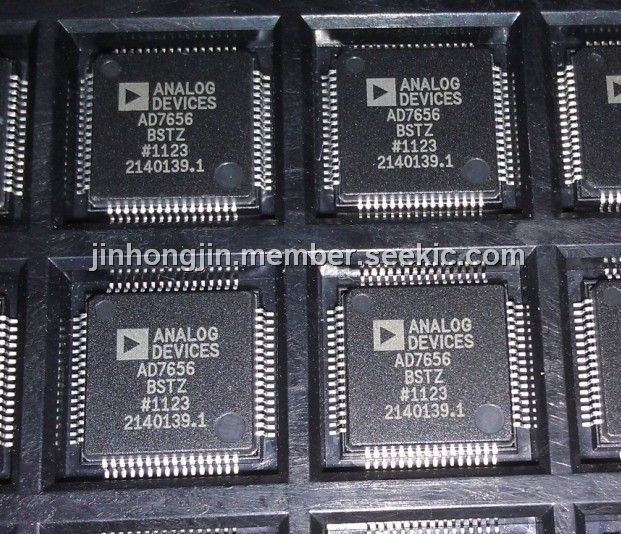

AD7656BSTZ

AD7656BSTZ, A/D converter, LQFP, -0.3 to +16.5V, ±10mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $15.85~18.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $15.85~18.35

PartNumber:: AD7656BSTZ

Brand:: Analog Devices - ADI | Pack: LQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kevin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-22

From Other Seller

Part Number:AD7656BSTZ
US $15.85 - 18.35
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD7656BSTZ is an A/D converter. The AD7656BSTZ contains six 12/14/16-bit, fast, low power, successive approximation ADCs all in the one package. The AD7656BSTZ core operates from a single 4.5 V to 5.5 V power supply and features throughput rates up to 250kSPS. The parts contain low noise, wide bandwidth track-andhold amplifiers that can handle input frequencies up to 8 MHz. The applications of the AD7656BSTZ include Power Line Monitoring systems, Instrumentation and control systems, Multi-axis positioning systems.

Parametrics

AD7656BSTZ absolute maximum ratings: (1)VDD to AGND, DGND : -0.3 V to +16.5 V; (2)VSS to AGND, DGND : +0.3 V to –16.5 V; (3)VCC to AGND, DGND : -0.3V to +7V; (4)VDRIVE to VCC : -0.3 V to VCC + 0.3V; (5)AGND to DGND : -0.3 V to +0.3 V; (6)VDRIVE to DVDD : -0.3 V to DVDD + 0.3V; (7)Analog Input Voltage to AGND : VSS – 0.5V to VDD + 0.5V; (8)Digital Input Voltage to DGND : -0.3 V to VDRIVE +0.3 V; (9)Digital Output Voltage to GND : -0.3 V to VDRIVE +0.3V; (10)REFIN to AGND : -0.3 V to VCC +0.3V; (11)Input Current to Any Pin Except Supplies : ±10mA; (12)Operating Temperature Range : -40℃ to +85℃; (13)Storage Temperature Range : -65℃ to +150℃; (14)Junction Temperature : +150℃; (15)64-LQFP Package, Power Dissipation θJA Thermal Impedance : TBD°C/W; (17)θJC Thermal Impedance : TBD°C/W; (18)Pb-free Temperature, Soldering Reflow : 260(+0)℃; (20)ESD : TBD kV.

Features

AD7656BSTZ features: (1)6 Independent ADCs; (2)True Bipolar Analog Inputs; (3)Pin/Software Selectable Ranges : ±10V, ±5V; (4)Fast throughput rate: 250 kSPS; (5)Specified for VCC of 4.5 V to 5.5 V; (6)Low power : 160mW at 250 kSPS with 5 V supplies; (7)Wide input bandwidth : 85 dB SNR at 50 kHz input frequency; (8)On-chip Reference and Reference Buffers; (9)Parallel and Serial Interface; (10)High speed serial interface : SPI/QSPI/μWire/DSP compatible; (11)Standby mode: 5 μA max; (12)iCMOSTM Process Technology; (13)64 LQFP package.
