Product Summary
The MM74HC4053MX is a Triple 2-Channel Analog Multiplexer. It is digitally controlled analog switches implemented in advanced silicon-gate CMOS technology. The MM74HC4053MX is a bidirectional switch, thus any analog input may be used as an output and vice-versa. Also the switch contains linearization circuitry which lowers the on resistance and increases switch linearity. The MM74HC4053MX contains 6 switches whose outputs are connected together in pairs, thus implementing a triple 2 channel multiplexer, or the equivalent of 3 singlepole-double throw configurations.
Parametrics
MM74HC4053MX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.5V; (2)Supply Voltage (VEE): +0.5 to -7.5V; (3)Control Input Voltage (VIN): -1.5 to VCC +1.5V; (4)Switch I/O Voltage (VIO): VEE -0.5 to VCC +0.5V; (5)Clamp Diode Current (IIK, IOK): ±20 mA; (6)Output Current, per pin (IOUT): ±25 mA; (7)VCC or GND Current, per pin (ICC): ±50 mA; (8)Storage Temperature Range (TSTG): -65℃ to +150℃; (9)Power Dissipation (PD): 600 mW; S.O. Package only: 500 mW; (10)Lead Temperature (TL)(Soldering 10 seconds): 260℃.
Features
MM74HC4053MX features: (1)Wide analog input voltage range: ±6V; (2)n Low “on” resistance: 50 typ. (VCC–VEE = 4.5V); 30 typ. (VCC–VEE = 9V); (3)Logic level translation to enable 5V logic with ±5V analog signals; (4)Low quiescent current: 80 mA maximum (74HC); (5)Matched Switch characteristic.

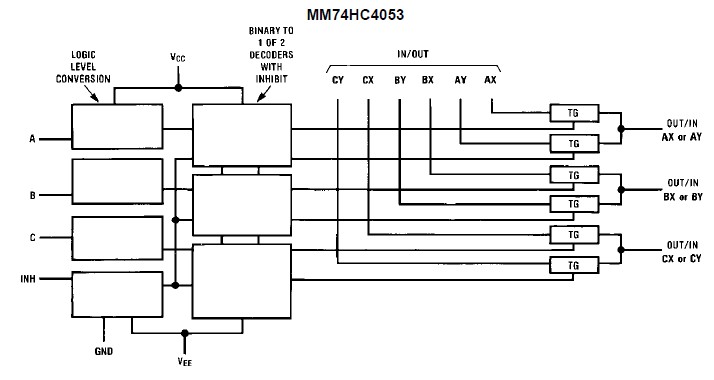

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM74HC4053MX |
Fairchild Semiconductor |
Multiplexer Switch ICs Trp 2-Chan Ana Multi |
Data Sheet |
Negotiable |
|
||||
|
MM74HC4053MX_Q |
Fairchild Semiconductor |
Multiplexer Switch ICs Trp 2-Chan Ana Multi |
Data Sheet |
Negotiable |
|
||||
